ALPS PM250-AS Small 250K Audio Potentiometer

6.45

Description

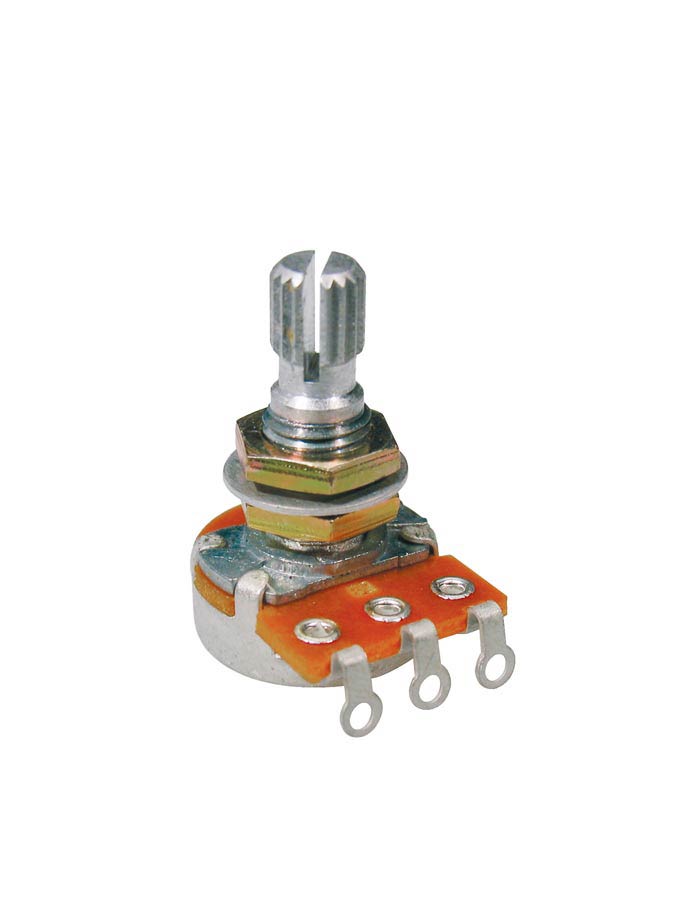

ALPS PM250-AS Small 250K Audio Potentiometer

The ALPS PM250-AS Small 250K Audio Potentiometer has a resistance of 250 kOhms, making it suitable for guitars equipped with single coils. Potentiometers wear out over time, causing a crackling sound when you touch the volume or tone controls of your guitar. The logarithmic taper is gradual, which makes this potentiometer ideal as a volume control. The ALPS PM250-AS Small 250K Audio Potentiometer features a split shaft. All ALPS Pots are now used as a factory standard in a huge range of guitar brands including Epiphone, Ibanez and Squire.

ALPS PM250-AS Small 250K Audio Potentiometer Features:

  • small 250K audio (volume) potentiometer
  • version: Split Shaft
  • resistance: 250 kOhms
  • taper: logarithmic
  • thread diameter: 16mm
  • 10mm Bushing
  • M7 x 0,75 thread
  • Knurled (Toothed): 18 Teeth (Coarse)
  • Logarithmic/Linear: Logarithmic
  • Long Shaft/Short Shaft: Short Shaft
  • Metric/ British American: Metric
  • Push Pull:No
  • Solid Shaft/Split Shaft: Split Shaft
  • Resistance: 250K (Single Coil)



Additional information

Weight 0.080 kg
Dimensions 4 × 3 × 1 cm
