Fishman Ellipse Aura Preamp With Narrow Undersaddle Pickup

419.00 379.00

  • Fishman Aura Ellipse Preamp
  • With Narrow Undersaddle Pickup, 3/32″ (2.3mm) Width
  • Aura Acoustic Imaging Technology
  • Automatic Anti-Feedback
  • Pickup/Image Blend Control

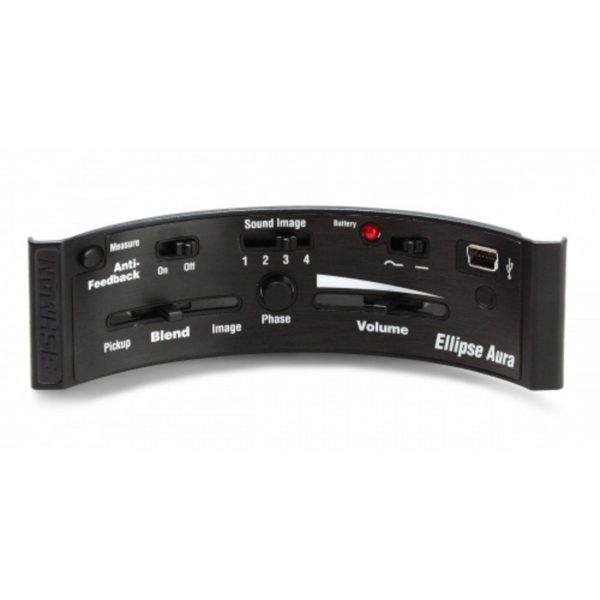

Fishman Ellipse Aura Preamp With Narrow Undersaddle Pickup

This preamp with undersaddle pickup combines Fishman’s most sophisticated preamp design with the imaging power of Aura® Acoustic Technology giving exceptional accuracy and natural sound. The Ellipse Aura allows guitarists to easily reproduce the sound of their instrument as miked in a professional studio.

The Fishman technology allows you to upload up to four Aura images into the preamp using the included software. You can then discreetly switch between them using the Sound Image switch. The ergonomic soundhole mounted design puts the slider control at your fingertips to maintain a natural playing position. The Ellipse Aura features Pickup/Image Blend, Volume and switchable Natural I and Natural II low frequency tone shaping, a Phase Switch and automatic Anti Feedback control.



  • State-of-the-art onboard preamp featuring Fishman?s Aura Acoustic Imaging Technology
  • Up to four Aura Images can be downloaded from Fishman?s Aura Image Gallery software (included)
  • Ergonomic soundhole mounted design puts slider controls at your fingertips to maintain a natural playing position
  • Features the world?s best selling undersaddle pickup, the Acoustic Matrix
  • Automatic anti-feedback
  • Pickup/Image Blend control
  • Volume control
  • Phase switch (feedback control)
  • Low battery indicator
  • Unique patent-pending neodymium magnetic mounting system for easy, solder-free installation
  • Solder-free connections
  • Switchable low frequency tone-shaping built into preamp
  • Pickup available in wide, narrow or split formats
  • Professional installation recommended
  • Narrow format: 3/32″ (2.3mm) width
  • Pickup length: Standard pickup length of 2.65″ (67.3mm) will fit most guitars with 2.5″ (63.5mm) string spaces
  • Soundhole: Accomodates most round soundholes from 3-7/8″ (98mm) to 4-1/8″ (105mm) in diameter
  • Battery: 9-Volt
  • Battery Life: 33 hours

Additional information

Weight 0.40 kg
Dimensions 17 × 10 × 8 cm
