Description

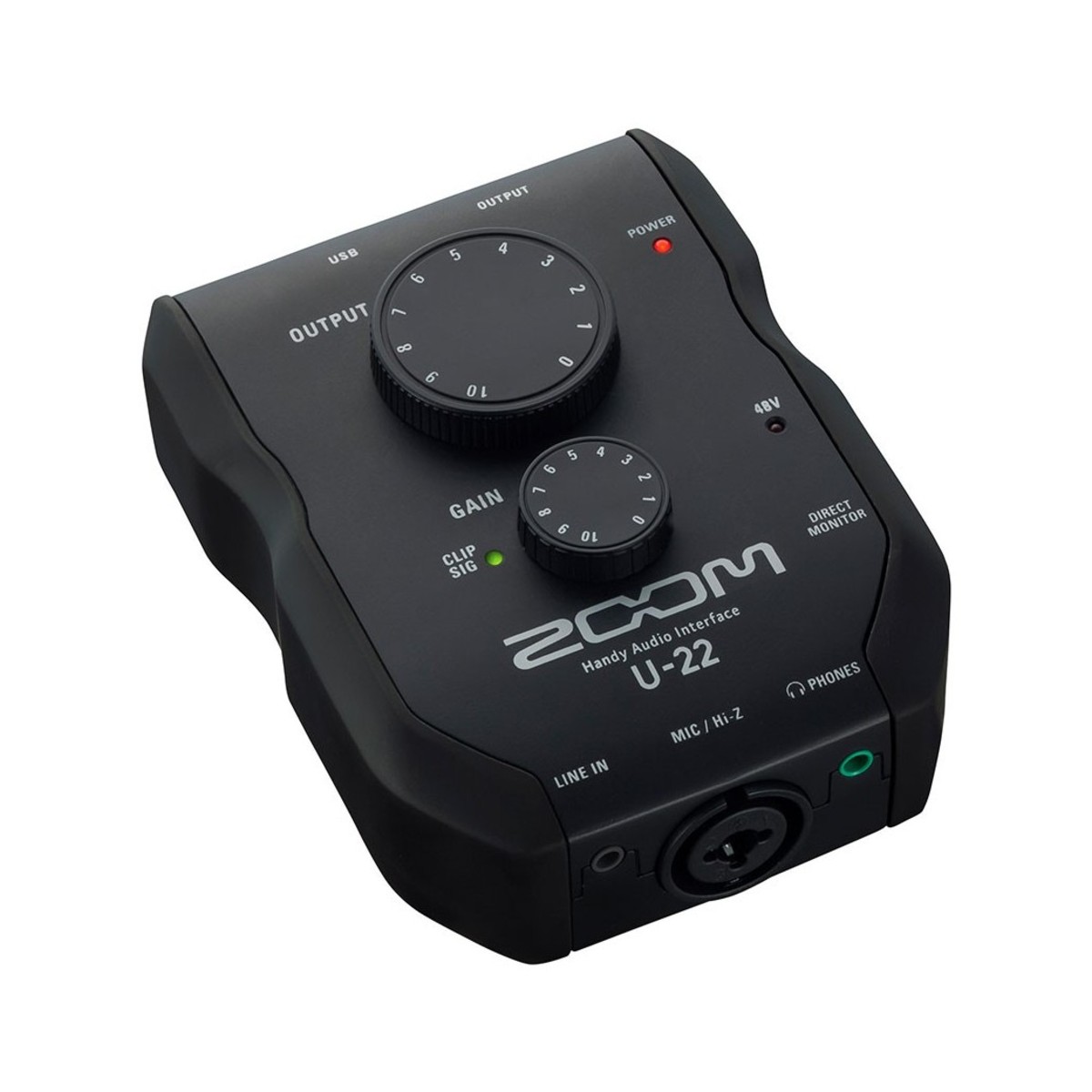

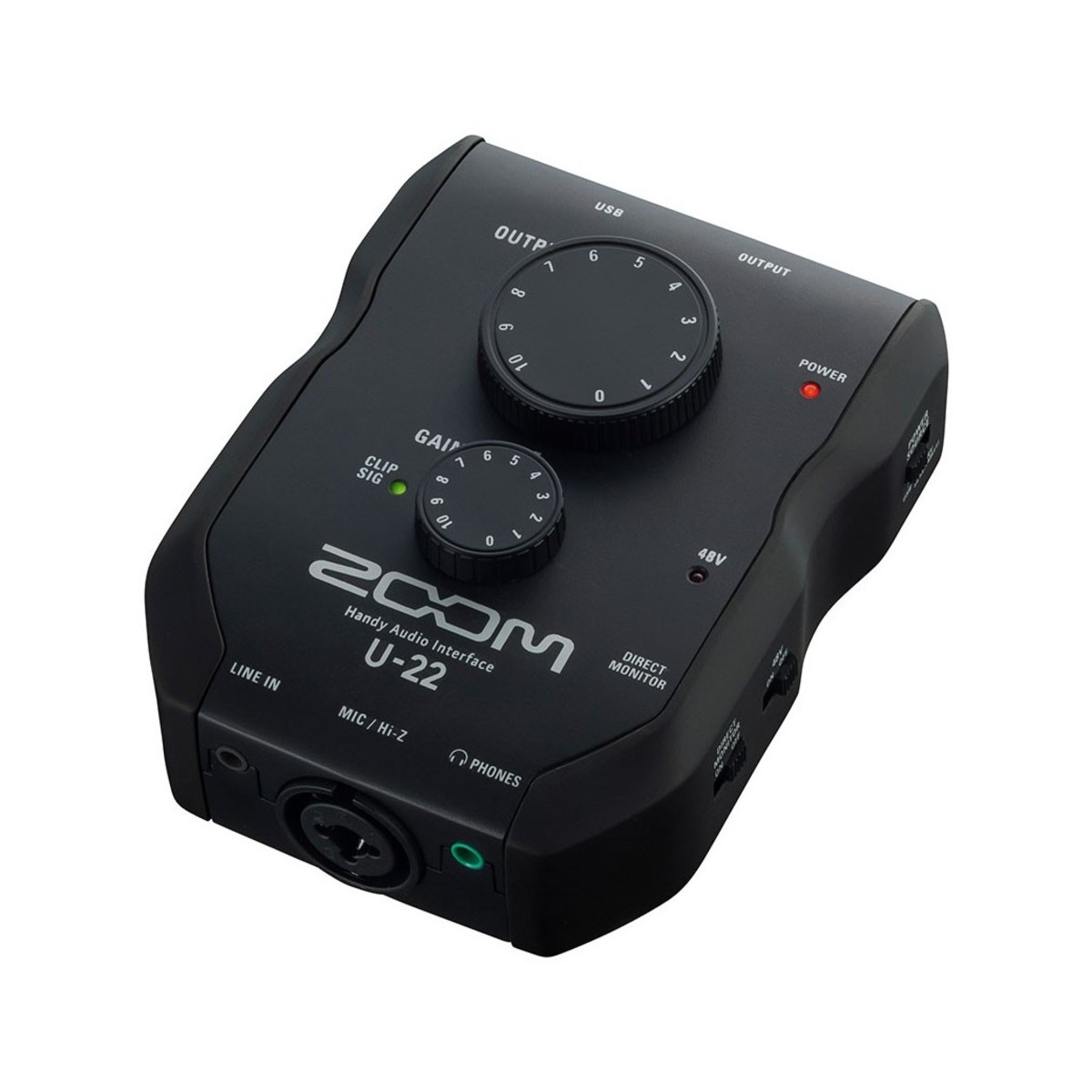

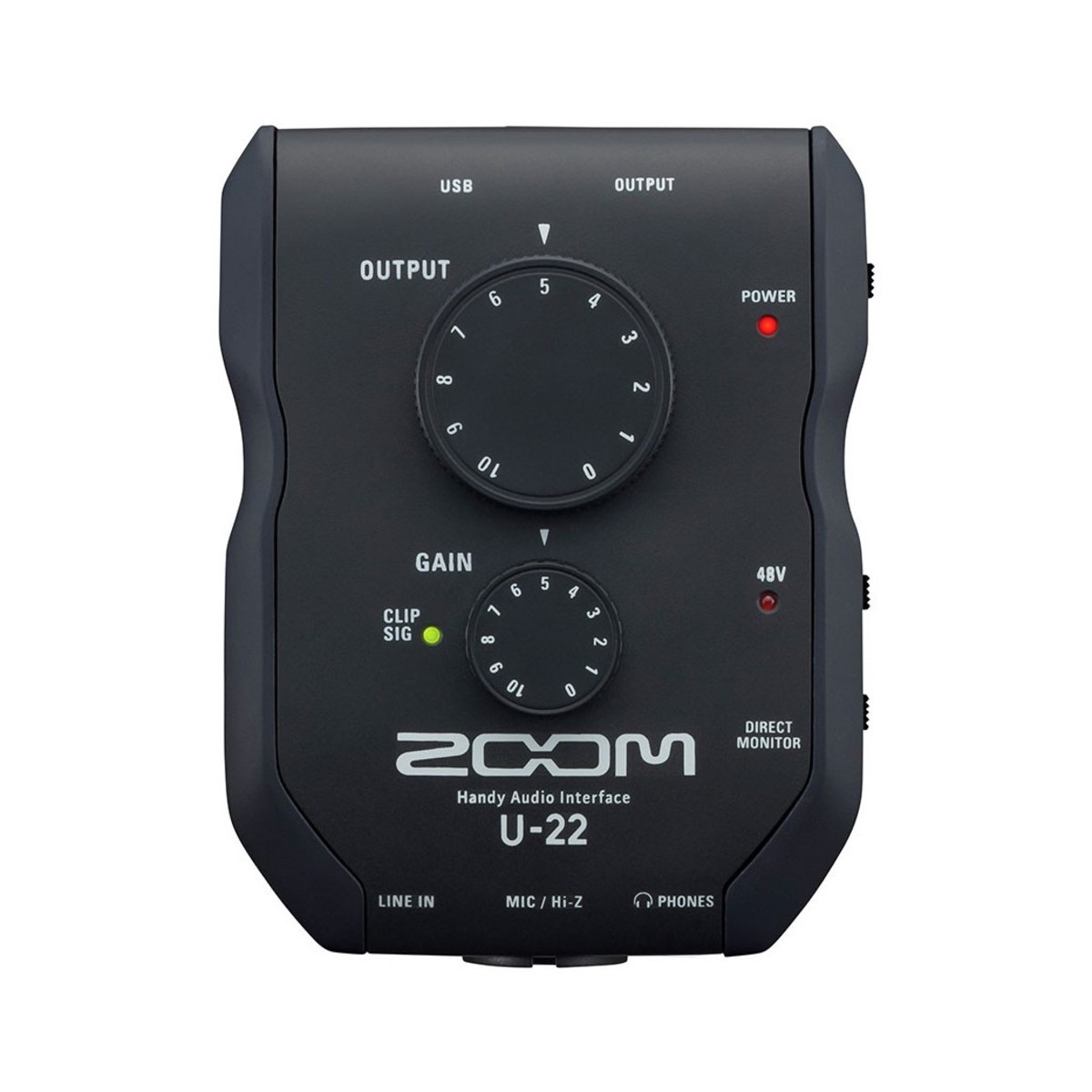

Zoom U22 USB Audio Interface

The Zoom U22 USB Audio Interface is the perfect tool for mobile recording and performance use, making use of an ultra-portable design which makes it easy to connect to laptops and iPads in order to access great quality audio, wherever you are. The low-noise mic preamp lets you record vocals, instruments, and more at resolutions of up to 24-bit/96 kHz. The U-22 delivers very similar audio quality to the ZOOM U-44 and U-24, but in a portable, compact design.

USB Power

The ZOOM U-22 features available Bus Power via USB which makes it ideal for connecting to a laptop or other device with USB output. The U-22 an also be used with an iPad, however it requires 2 AA batteries or AC adapter for power, plus a Lightning-to-USB Camera Adapter for connection to iPad.

Low Noise Preamp

The ZOOM U-22 features a high-performance, low-noise mic preamp, which allows for playback at resolutions up to 24-bit/96 kHz. You can also use the U-22 as a headphone amp in order to achieve studio-quality audio direct through your headphones.

Wide Compatibility

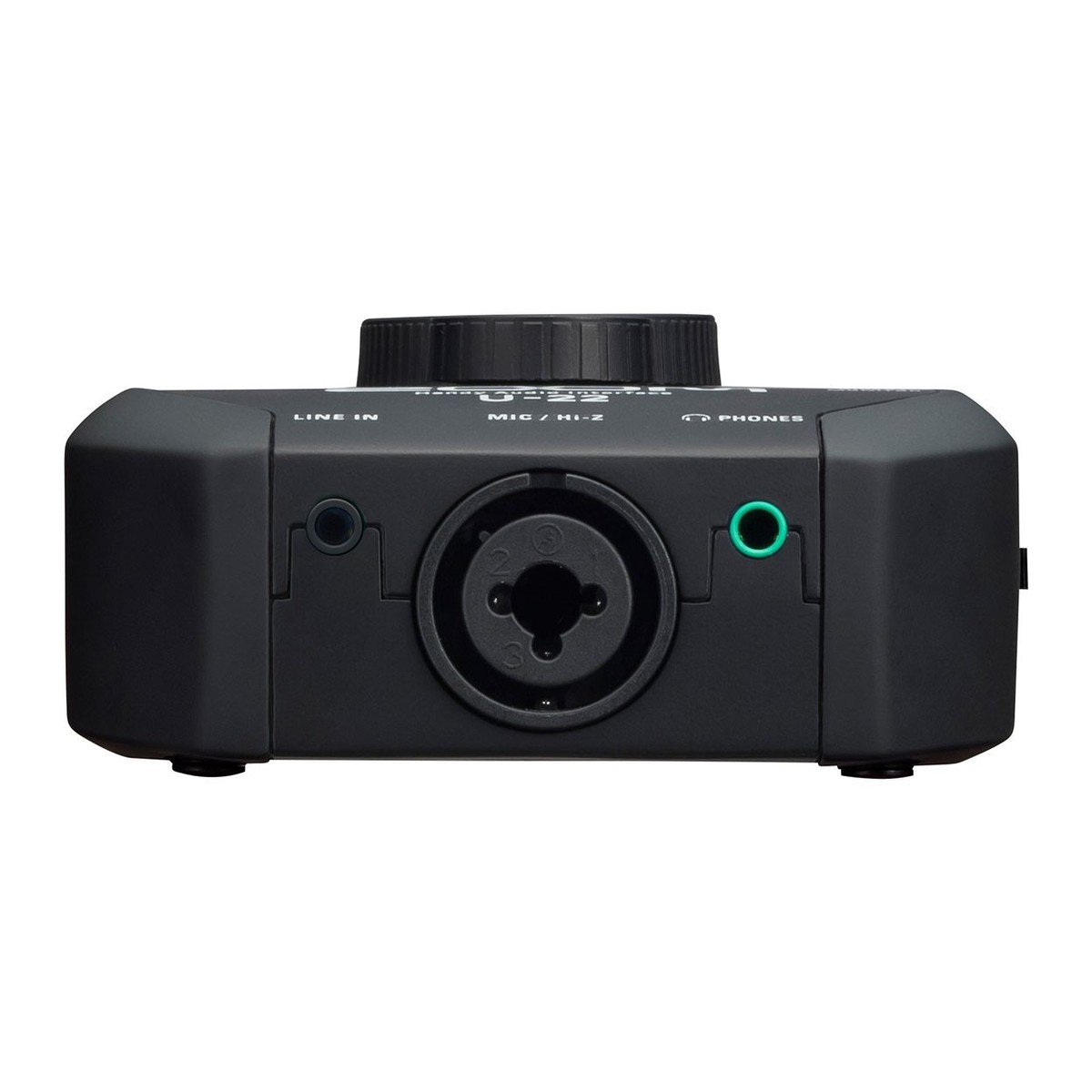

The U-22 sports XLR/TRS combo input connectivity into which a mic can be plugged, or alternatively a line-level source. Hi-Z support means that you can even connect a guitar or bass. The stereo input also lets you record an iPad or any other portable audio device.

Direct Monitoring Support

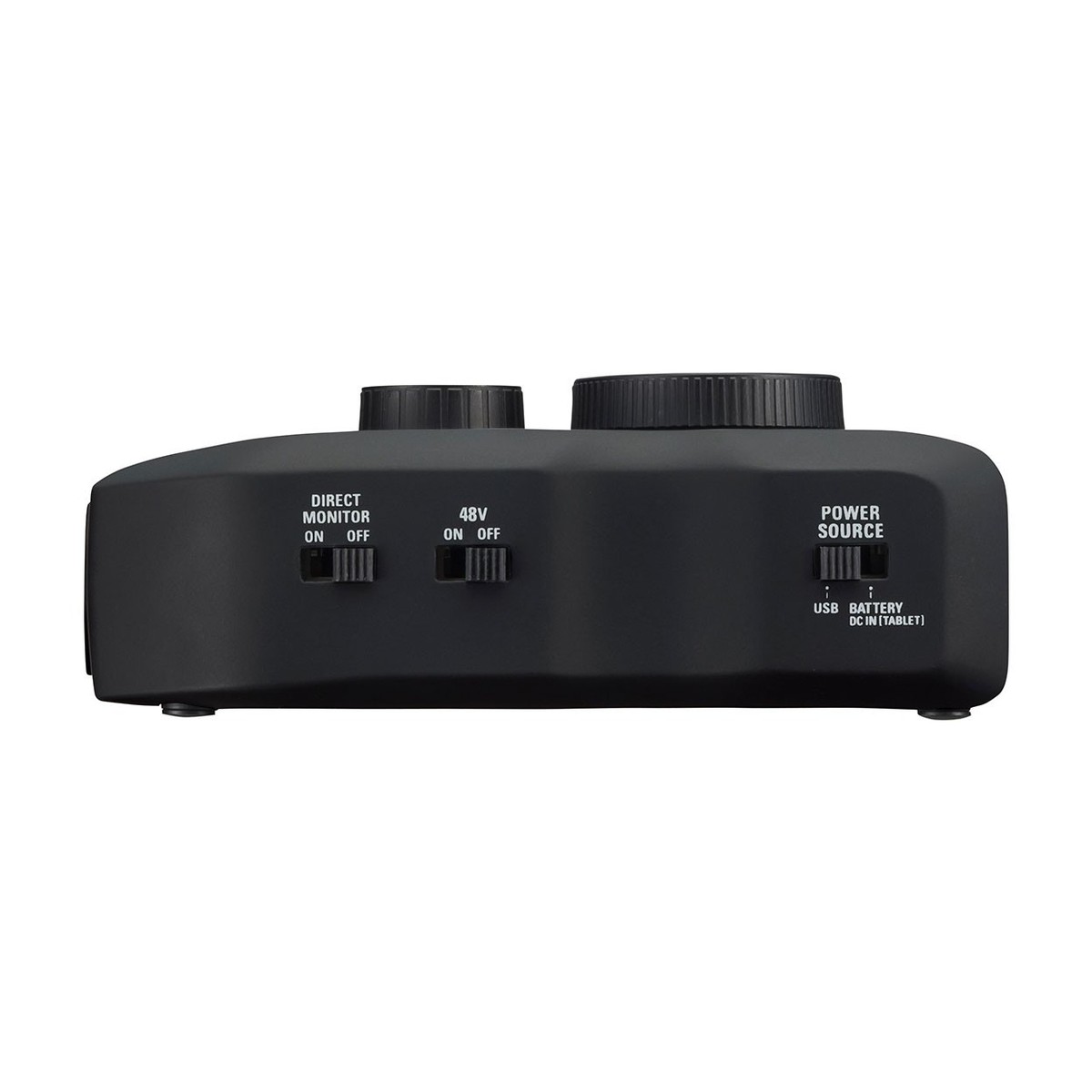

The ZOOM U-22 is also equipped with a direct monitoring switch to allow you to hear your signal before it passes through the computer, resulting in zero latency whilst recording or mixing.

Ableton Live 9 Lite Included

A download code for Ableton Live 9 Lite can also be found in the box, so that you have everything you need to start producing, mixing, and monitoring audio. Within Ableton Live 9 Lite, you can find studio-quality effects including EQ, compression, reverb, delay, chorus, filter, and more.

Zoom U22 USB Audio Interface Features:

• Stereo USB audio interface for PC/Mac/iPad
• Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB
• Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
• XLR/TRS input with high-performance mic preamp
• High-quality recording and playback at resolutions up to 24-bit/96 kHz
• Approximately 5 hours of operation with 2 AA alkaline batteries
• Includes download code for Ableton Live 9 Lite
• Hi-Z support
• Zero-latency direct monitoring

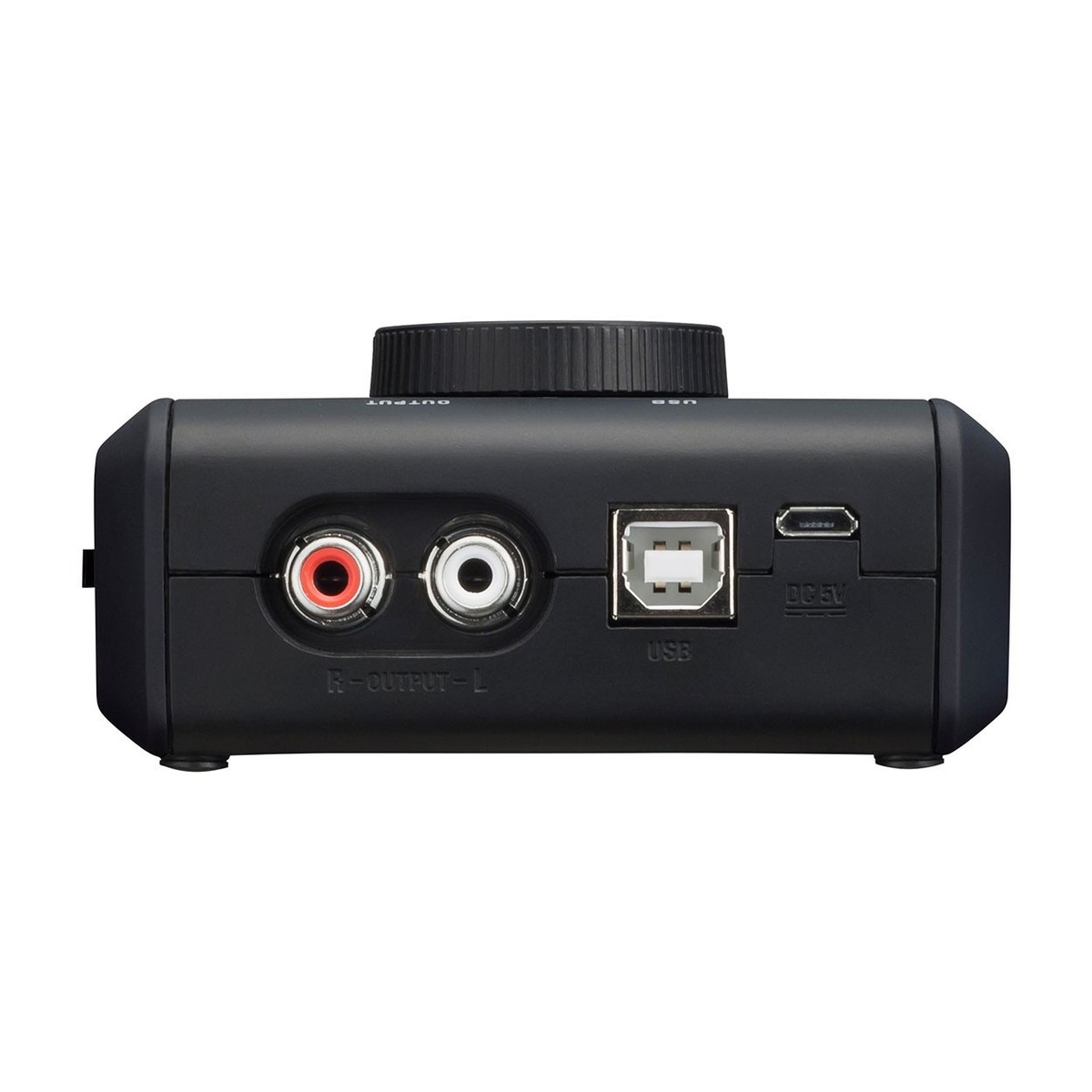

• Dedicated RCA L/R and headphone outputs
• Gain control knob for Mic/Hi-Z input
• +48V phantom power
• Accepts standard AA alkaline or NiMH rechargeable batteries

Zoom U22 USB Audio Interface Specifications:

• Connector: XLR/TRS combo jack (XLR: 1 hot, TRS: TIP hot)
• Input gain: 0 – 43 dB
• Input impedance: 2.6 k Ω (MIC) 484 k Ω (Hi-Z)
• Maximum input level: -0.8 dBu (MIC) /+8.7 dBu (Hi-Z)
• Phantom power: +48V

ANALOG IN: LINE IN

• Connector: Stereo mini jack
• Input impedance: 22 kΩ
• Maximum input level: +1.0 dBu

ANALOG OUT: OUTPUT L/R

• Connector: RCA (coaxial)
• Maximum output level: -0.8 dBu (at 0 dBFS) (into 10 kΩ load)
• Output impedance: 1 kΩ

ANALOG OUT: PHONES

• Connector: Standard stereo phone jack 10 mW x 2 (into 32 Ω load)
• Output impedance: 10 Ω
• Frequency characteristics: At 44.1 kHz: ±1.5dB: 20 Hz – 20 kHz – At 96 kHz: ±2 dB: 20 Hz – 40 kHz
• Input conversion noise: Measured EIN: -120 dB or less (IHF-A) at 43 dB, 150 Ω input
• Number of audio recording and playback channels: Recording: 2 channels
• Playback: 2 channels
• Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
• Bit depth: 24-bit
• Interface: USB 2.0
• Power Source: USB bus power (Type B) – Zoom AD-17 (Micro-B) – DC 5V power supply (Micro-B) – 2 AA batteries (About 5 hours continuous operation with phantom power off)
• Power consumption: 5W maximum
• Dimensions: 119.2 mm (D) x 91.8 mm (W) x 44.6 mm (H)
• Weight (main unit only): 151 g

System Requirements

Windows:

• OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
• CPU: Intel® Core i3 or faster (Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD)
• USB: USB 3.0/USB 2.0 (Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards)

Mac:

• OS: Mac® OS X 10.9.5 or later / 10.10 / 10.11
• CPU:Intel® Core i3 or faster
• USB: USB 3.0/USB 2.0 (Operation is not guaranteed when used with USB hubs or expansion cards)

iPad:

• OS: iOS 7.1 or later
• * Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter.

Contents

• Operation manual
• Ableton Live 9 Lite software download code
• USB Cable
