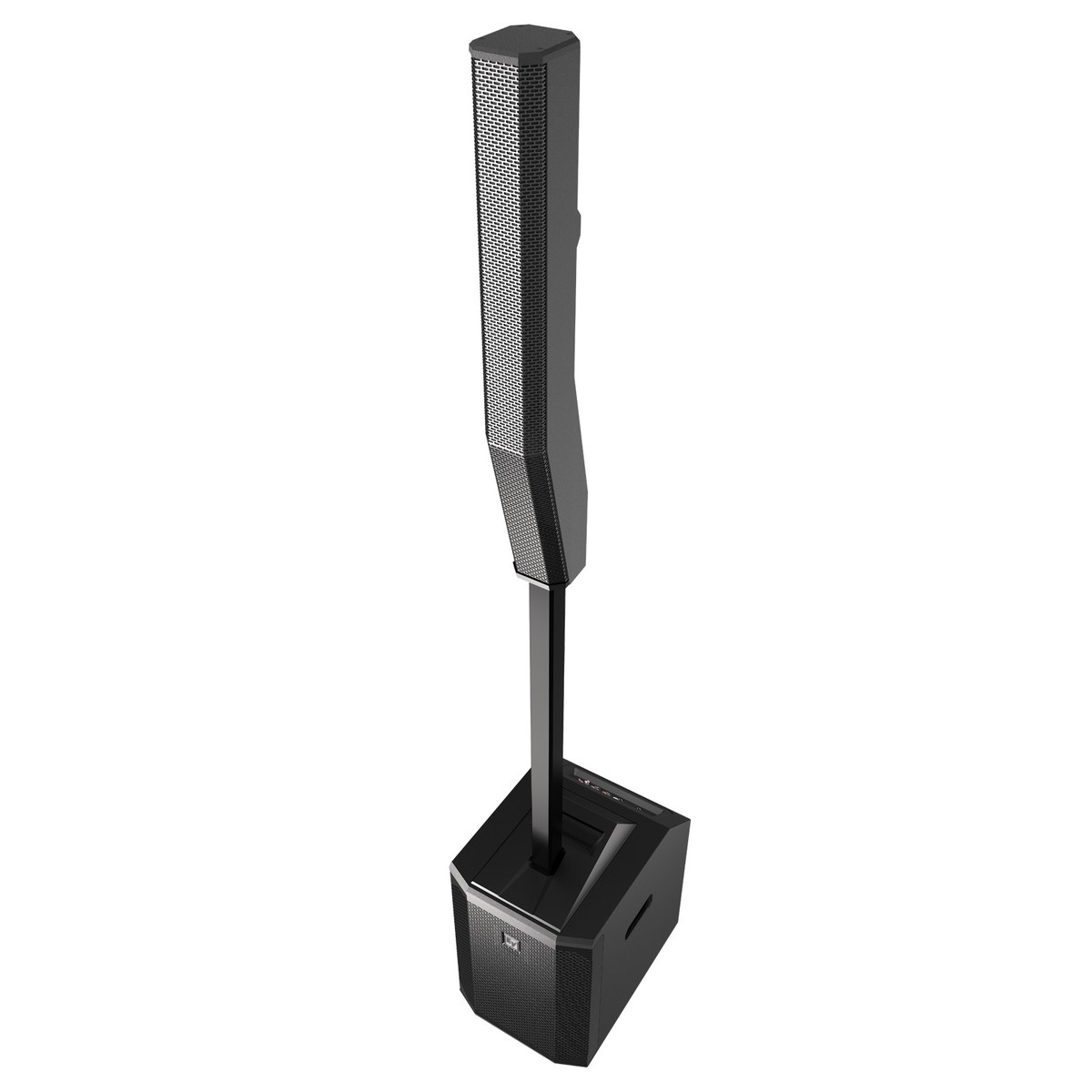

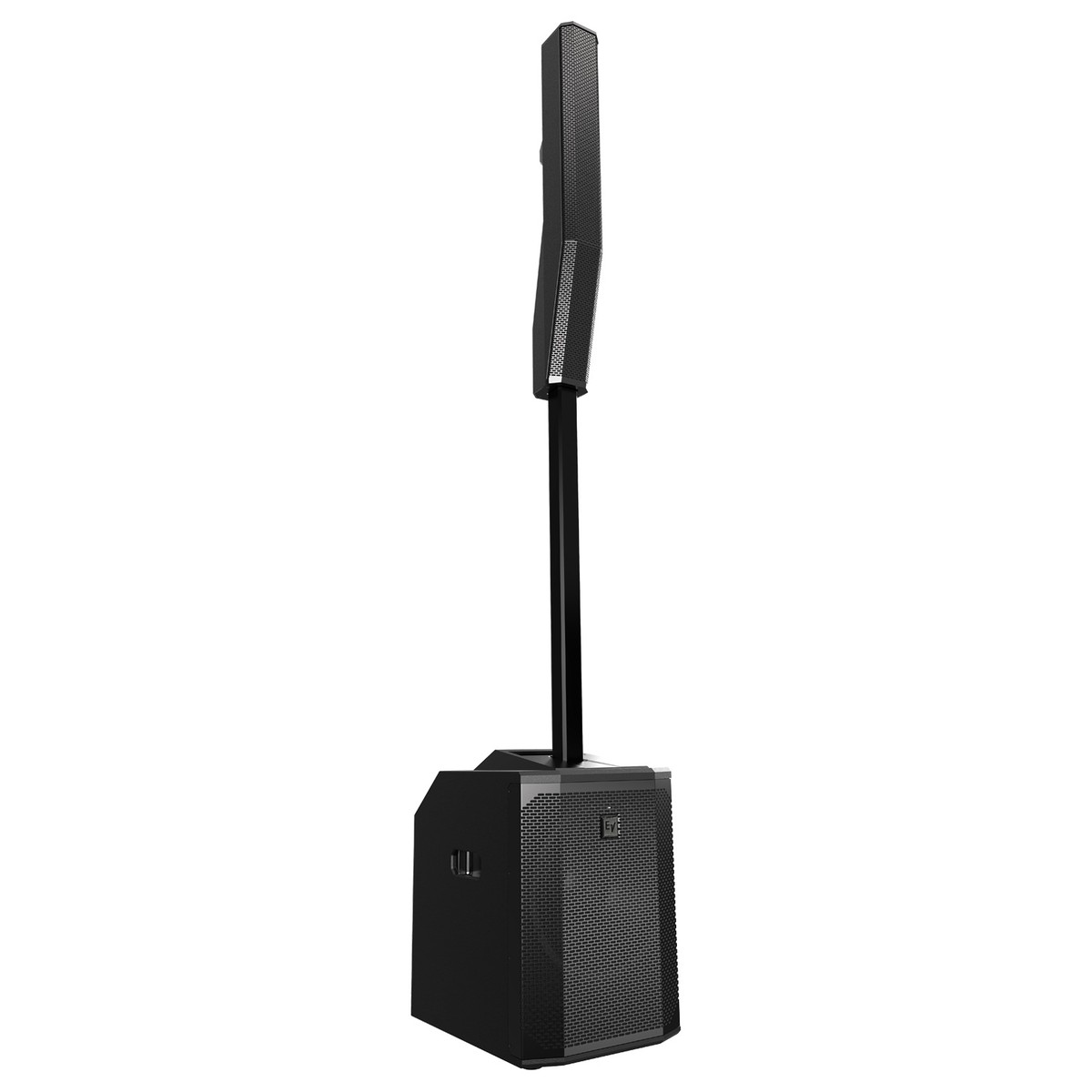

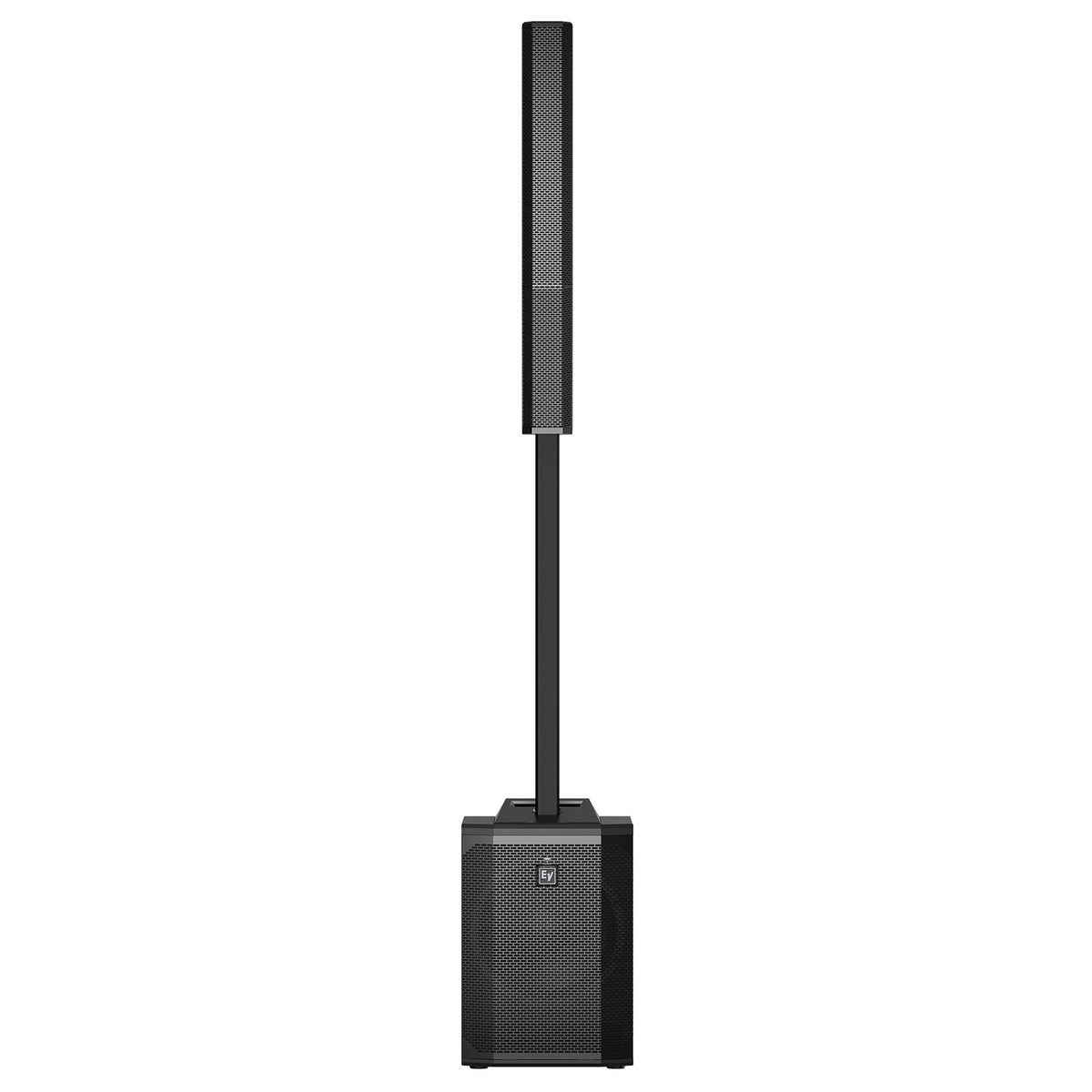

Electro-Voice Evolve 50 Column PA System


Out of stock

SKU: EV-E50 Category: Tags: , , , Brands: .


The Electro-Voice Evolve 50 Column PA System is the perfect choice for DJs, mobile entertainers, bands, singer/songwriters and any venue where high-output portable sound is needed – no other column system currently available sounds as good, looks as good or is as easy to use as the Electro-Voice Evolve 50 offering the smooth clarity of EV sound in a sleek new form factor.

Innovative DSP

Controllable via a single-knob interface with an LCD display, the QuickSmart DSP consists of four presets – Music, Live, Speech and Club – along with a three-band EQ, five user-programmable presets, system-match crossovers, metering and master volume control. The Electro-Voice Evolve 50 is equipped with the QuickSmartDSP which provides best-in-class processing and versatility for instantly optimising the sonic performance to suit any environment.

Wireless Control

The QuickSmartMobile app allows you to control up to six Electro-Voice Evolve 50 array systems simultaneously. Simply connect to each speaker via Bluetooth® to optimise the sound from anywhere in the venue and receive immediate notification during critical performance conditions.

Electro-Voice Evolve 50 Column PA System Features:

  • Clean, compact design – built to blend in
  • Angled interface provides easy access to make adjustments and connections on input panel
  • Legendary EV audio quality via eight 3.5” full-range drivers and a 12” subwoofer, powered by a three-channel amp for high output
  • Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format
  • Custom waveguides provides ultra-wide 120° horizontal coverage and array-formed 40° asymmetrical vertical pattern
  • Exceptional audience coverage and clarity from front to back
  • High-quality Bluetooth® audio for convenient wireless audio streaming
  • Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app
  • Quickly configure up to six Evolve 50 systems simultaneously, and receive immediate notification during critical performance conditions
  • QuickSmartDSP provides best-in-class processing via EV’s signature single-knob user interface and LCD display
  • Four presets (Music, Live, Speech, Club), three-band EQ, five user presets, output delay, phantom power, input level control and metering, and master volume control
  • Lightweight column speaker array with cable-free connection quickly secures pole to sub
  • Convenient transport and quick setup
  • Ergonomically designed handles on both the array and the sub to enhance portability

Electro-Voice Evolve 50 Column PA System Specifications:

  • Frequency Response: 37Hz – 20kHz, -10dB
  • Maximum SPL: 127dB
  • High-Frequency Drivers: 3.5” Neodymium Drivers
  • Low-Frequency Driver: 12” Woofer
  • Power Handling: 1000W
    • High-Frequency: 500W
    • Low-Frequency: 500W
  • Amplifier Type: Class-D
  • Crossover Frequency: 200Hz
  • Coverage: 120° x 40° (H x V)
  • Input Connectors:
    • 2 x XLR/TRS Combo Jacks
    • 1 x 3.5mm Jack
    • 1 x Stereo rCA
    • Wireless Bluetooth®
  • Output Connectors:
    • 1 x XLR Thru
    • 1 x XLR Mix Out
  • Grille: Steel with Black Powder Coat
  • Enclosure Material: Wood
  • Dimensions:
    • Sub: 471mm x 345mm / 18.5” x 13.6” (D x W)
    • Column: 172mm x 102mm / 6.9” x 4” (D x W)
    • Pole: 55mm x 48.5mm / 2.2” x 1.9” (D x W)
  • Power Supply: 100V – 240V AC, 50Hz – 60Hz
  • Weight: 26.25kg

Additional information

Weight 19 kg
Dimensions 140 × 20 × 14 cm
