Description

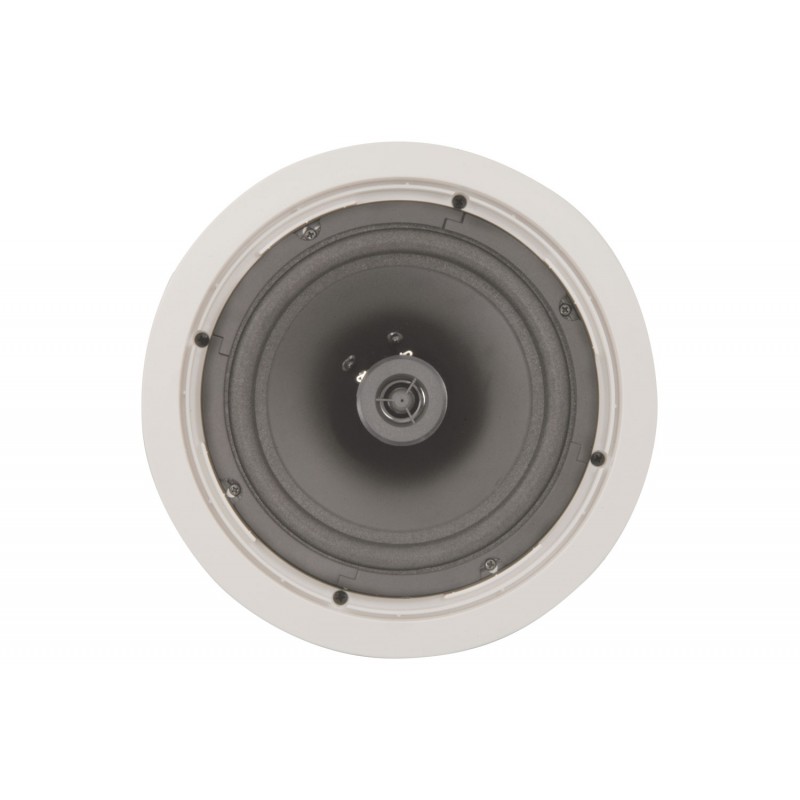

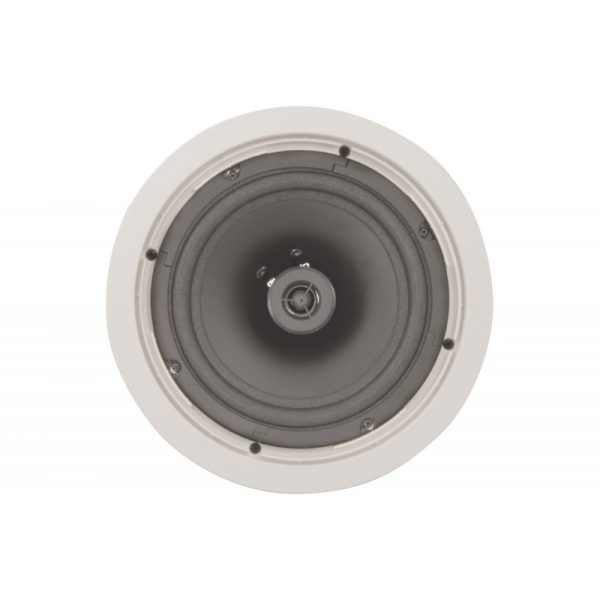

Adastra CC8V 8” 2 Way Ceiling Speaker 100V
The Adastra CC8V 8” 2 Way Ceiling Speaker 100V is a 2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.
Adastra CC8V 8” 2 Way Ceiling Speaker 100V Features:

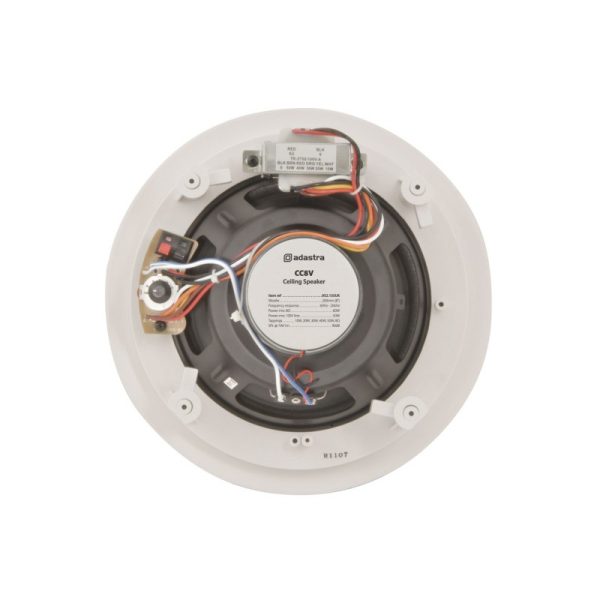

- Rotary selector switch for 100V line tappings or 8 Ohms
- Fitted with “dog-ear” mounts for fixing to ceiling tiles 1-20mm in thickness
- Spring loaded terminals for easy connection
- Dispersion Angle: 160°
Adastra CC8V 8” 2 Way Ceiling Speaker 100V Specifications:
- Version: CC8V: 8″
- Woofer: 200mmØ (8″)
- Tweeter: 44mmØ (1.75″)
- Frequency response: 60Hz – 20kHz
- Power rms : 8 Ohms 60w RMS (max 120w)
- Power rms : 100V line: 60W

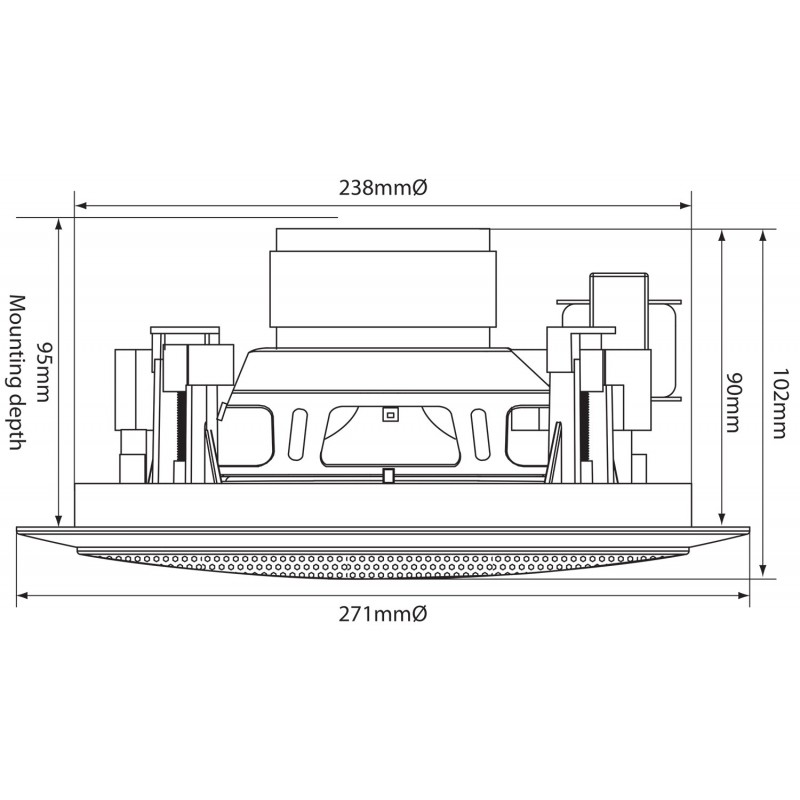

- Cutout: 238mmØ
- Mounting depth: 95mm
- SPL @ 1W/1m: 89dB (±2dB)
- Tappings: 10, 20, 30, 40, 50W & 8 Ohms
- Dimensions: 102 x 271mmØ
- Weight: 1.85kg
