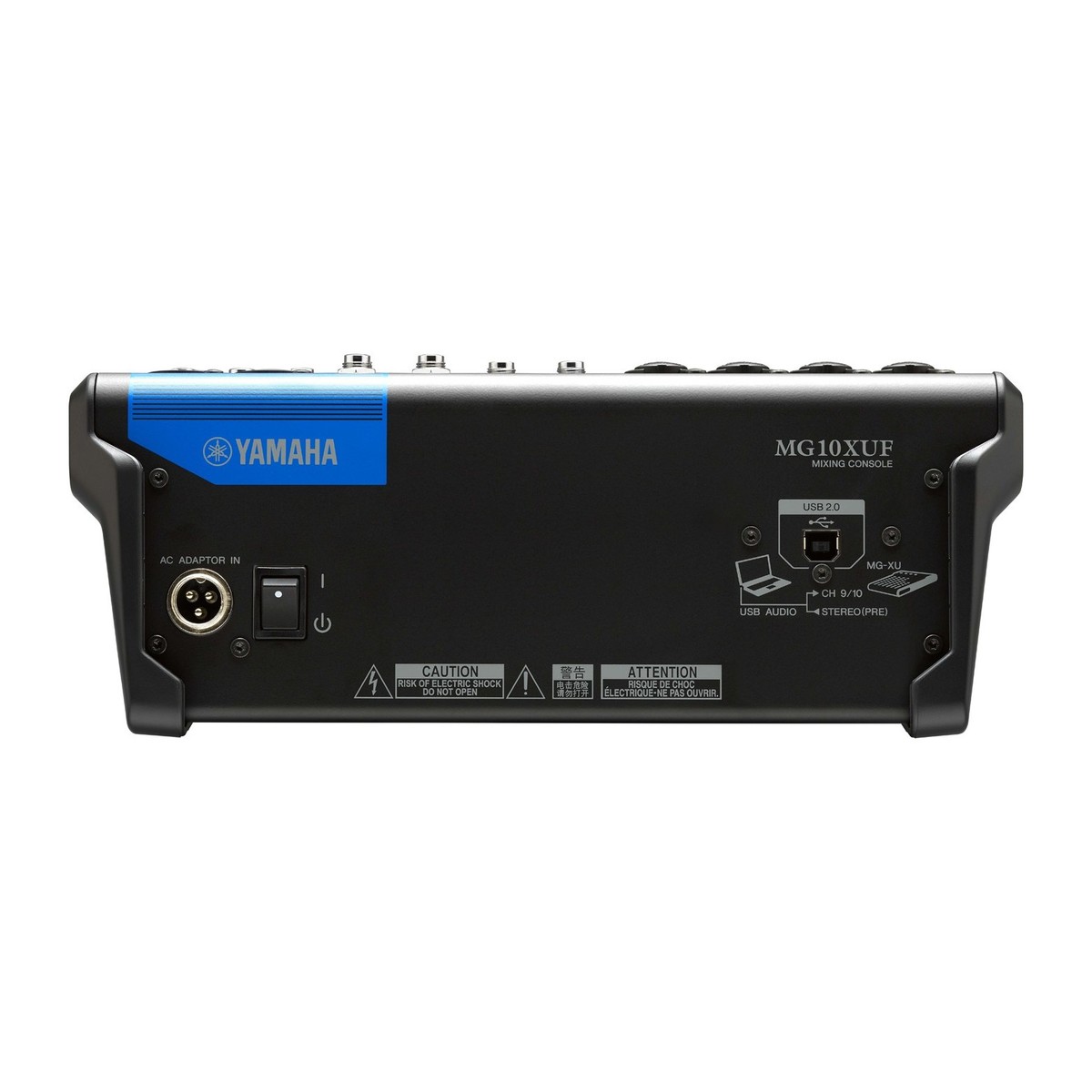

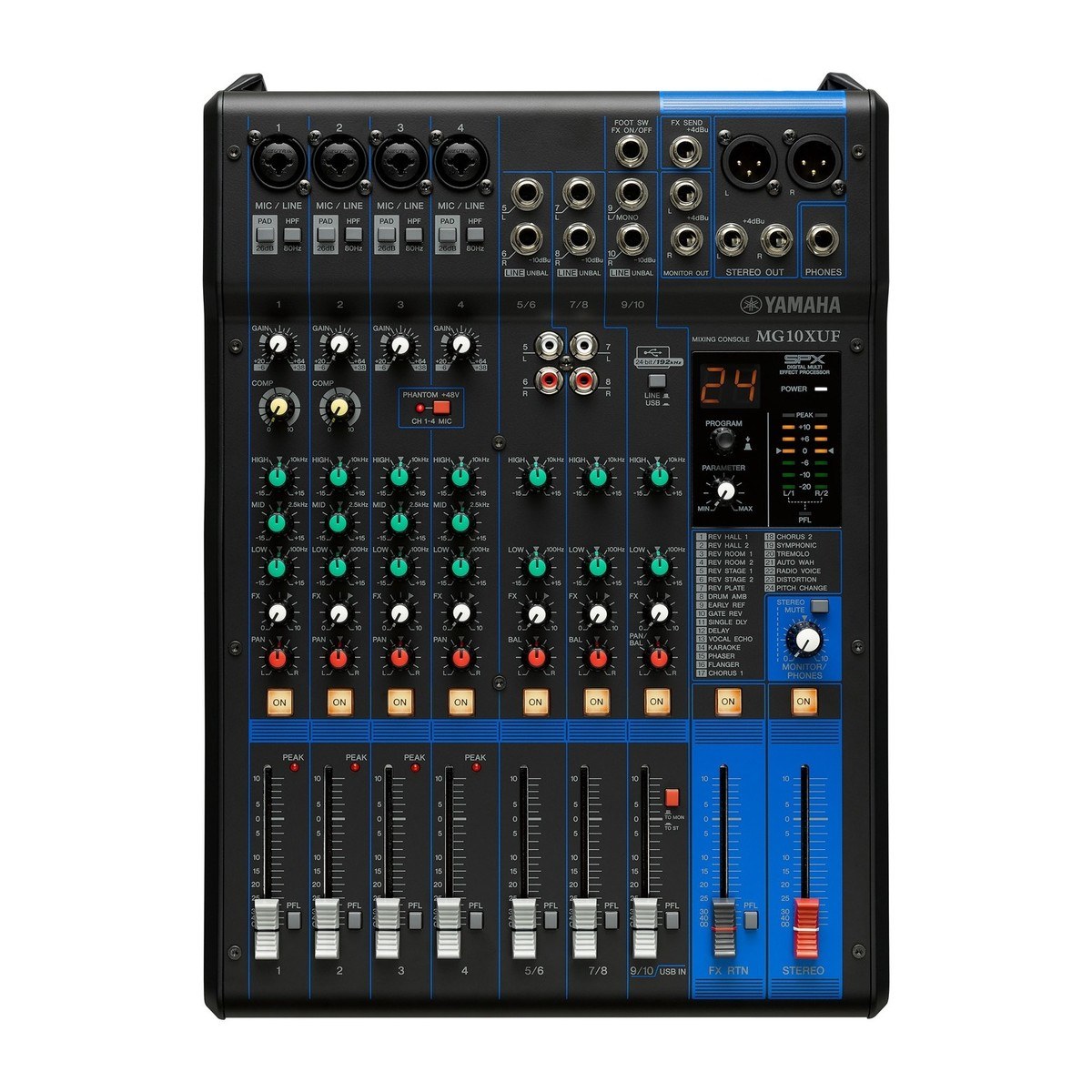

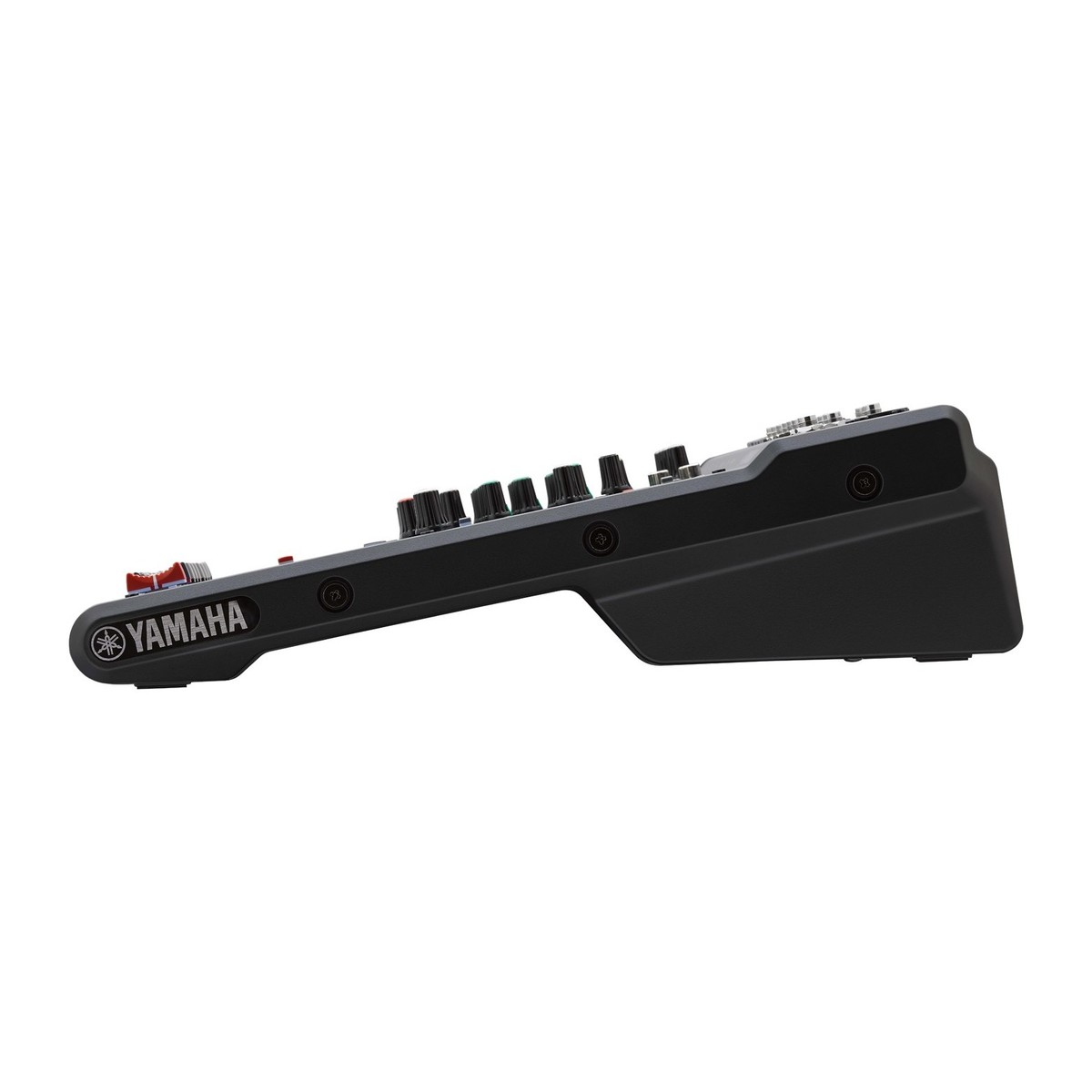

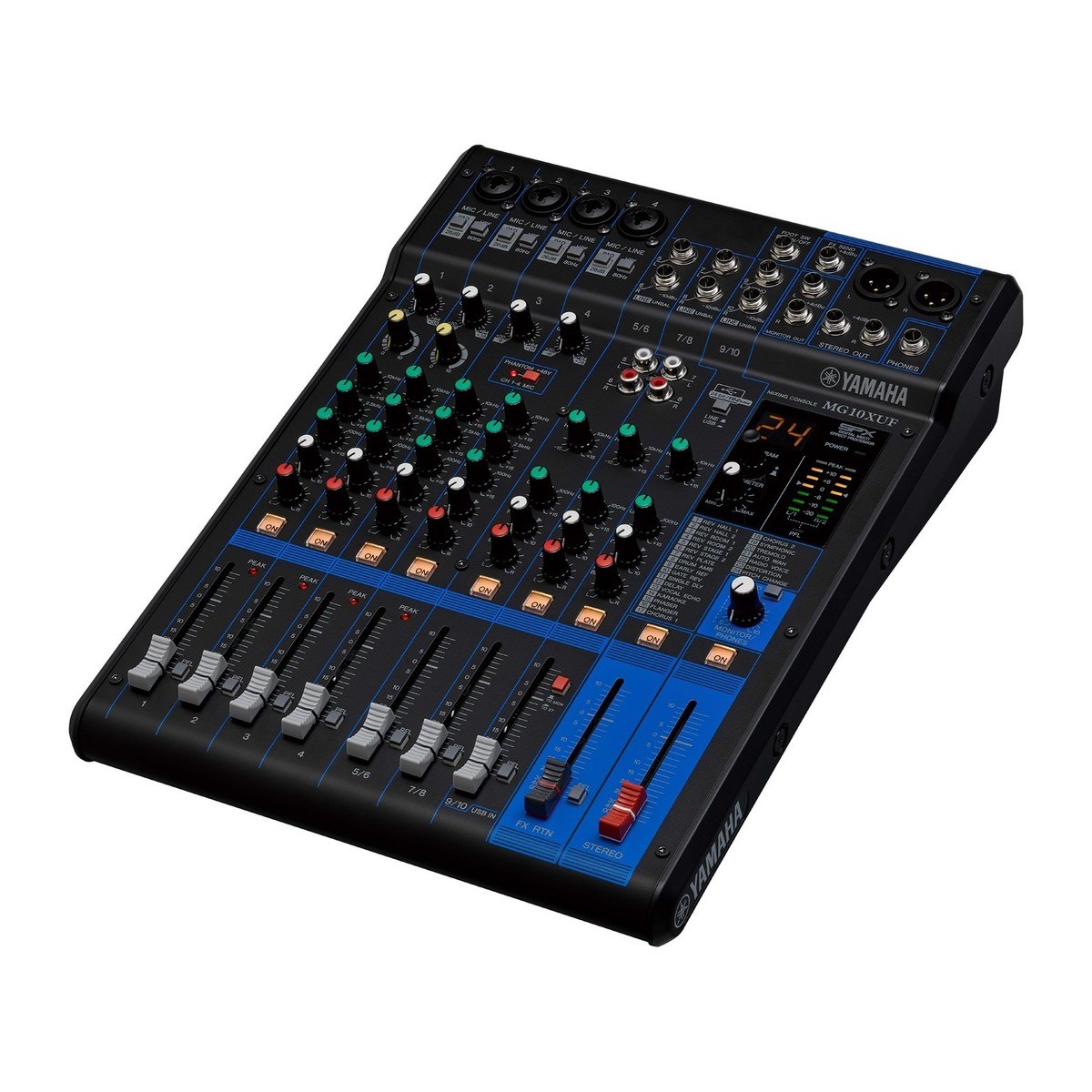

Yamaha MG10XUF Analog USB Mixer

325.00

Description

The Yamaha MG10XUF Analog USB Mixer builds upon the success of the renowned MG10XU and replaces the master channel control knobs with faders. The MG10XUF is designed to provide an exceptionally transparent sound and an intuitive, hands-on mixing experience. The MG10XUF is equipped with 10 input channels, including 4 microphone channels with D-PRE preamps, along with independent 3-band EQs, 1-knob compressors, pad switches and switchable +48V phantom power. This Yamaha analog mixing console has an intuitive layout and a heavy-duty metal chassis, capable of withstanding demanding conditions of both live performance and studio environments. The Yamaha MG10XUF features a built-in USB audio interface which enables you to record directly to your computer and playback 24-bit/192kHz audio. The included version of Cubase AI DAW software allows you to record and edit high-resolution tracks.

Studio Grade Preamps

The preamp is the starting point when it comes to mixers and they are the most vital components for determining the quality of your mix. The mixers within the Yamaha MG series all feature a studio-grade class-A D-PRE preamp to deliver more power at a lower impedance. This premium preamp possesses an extremely wide frequency range and delivers a sound full of fat bass tones and incredibly smooth highs with little to no distortion. This pure platform allows you to get straight into the performance without needing to spend wasted time trying to ‘fix’ your mix.

Integrated Digital Effects

Featuring an updated version of Yamaha’s highly regarded SPX effects processor, the MG10XUF offers up to 24 editable digital effects. These built-in effects provide additional depth to an overall sound or give a boost to a live band performance. With incredible reverb and delay effects, the mixer delivers a natural sound full of clarity.

Custom Made MG01 Op-Amp

The sound quality is derived from the head amp, and one of the most important sections of the head amp is the op-amp. The Yamaha MG series mixers all have custom made MG01 amplifiers that focus on sound quality first and foremost. This integrated circuit is redesigned for optimal resolution.

Switchable Phantom Power & PAD Switch

The mixing consoles within the MG series gives users outstanding control over the improved frequency response and sound quality of condenser microphones. The input channel with PAD switch allows MIC to line level of inputs and attenuates high input signals. Therefore, the mixer can avoid issues with clipping that can be so prevalent in affecting a mix.

Innovative 1-Knob Compressor

The MG10XUF features newly upgraded 1-knob compressors with LED indicators that allow you to visually monitor when compression ”kicks in” on each channel. These intelligent compressors add optimally set compression to a wide variety of input sources by simply adjusting a single control – eliminating the need to set up and configure complex outboard equipment.

Cubase AI Bundle

Included with the MG10XUF is a downloadable version of the Cubase AI software to offer users an outstanding music production experience straight out of the box. The advanced, DAW options allow for ultimate control over your sound and it is this quality that has garnered Cubase critical acclaim.

Yamaha MG10XUF Analog USB Mixer included In The Box:

  • 1 x Yamaha MG10XUF Analog Mixer
  • 1 x AC Adapter
  • 1 x Cubase AI Download Information
  • 1 x Owner’s Manual
  • 1 x Technical Specifications Sheet

Yamaha MG10XUF Analog USB Mixer Features:

  • Discrete Class-A mic preamps
  • High quality sound op-amp
  • Switchable phantom power & PAD switch
  • 1-knob compressors
  • AUX input
  • EQ & high-pass filters
  • Variety of input & output connectors
  • LED level metering
  • Built-in SPX digital effects
  • Metal chassis
  • Includes Cubase AI downloadable software

Yamaha MG10XUF Analog USB Mixer Specifications:

  • Input Channels
    • Mono: 4 x Mic/Line
    • Stereo: 3 x Line
  • Output Channels
    • Stereo Out: 2
    • Monitor Out: 1
    • Headphone Output: 1
    • AUX Send: 1
  • Bus:
    • 1 x Stereo
    • 1 x Aux (FX)
  • On-Board Effects: 24 x SPX Algorithms Effects
  • Phantom Power: +48V
  • USB Interface: USB 2.0, 24-Bit/192kHz
  • PAD: 26dB (Mono)
  • HPF: 80Hz, 12dB/oct (Mono)
  • Compressor
    • Threshold: +22dBu to -8dBu
    • Ratio: 1:1 to 4:1
    • Output Level: 0dB to 7dB
    • Attack Time: Approx. 25msec
    • Release Time: Approx. 300msec
  • EQ:
    • High: 10kHz Shelving (+15dB/-15dB Gain)
    • Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
    • Low: 100Hz Shelving (+15dB/-15dB Gain)
  • Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
  • Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
  • Crosstalk: -83 dB
  • Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
  • Power Consumption: 22.9W

Additional information

Weight 5.5 kg
Dimensions 42 × 48 × 20 cm
