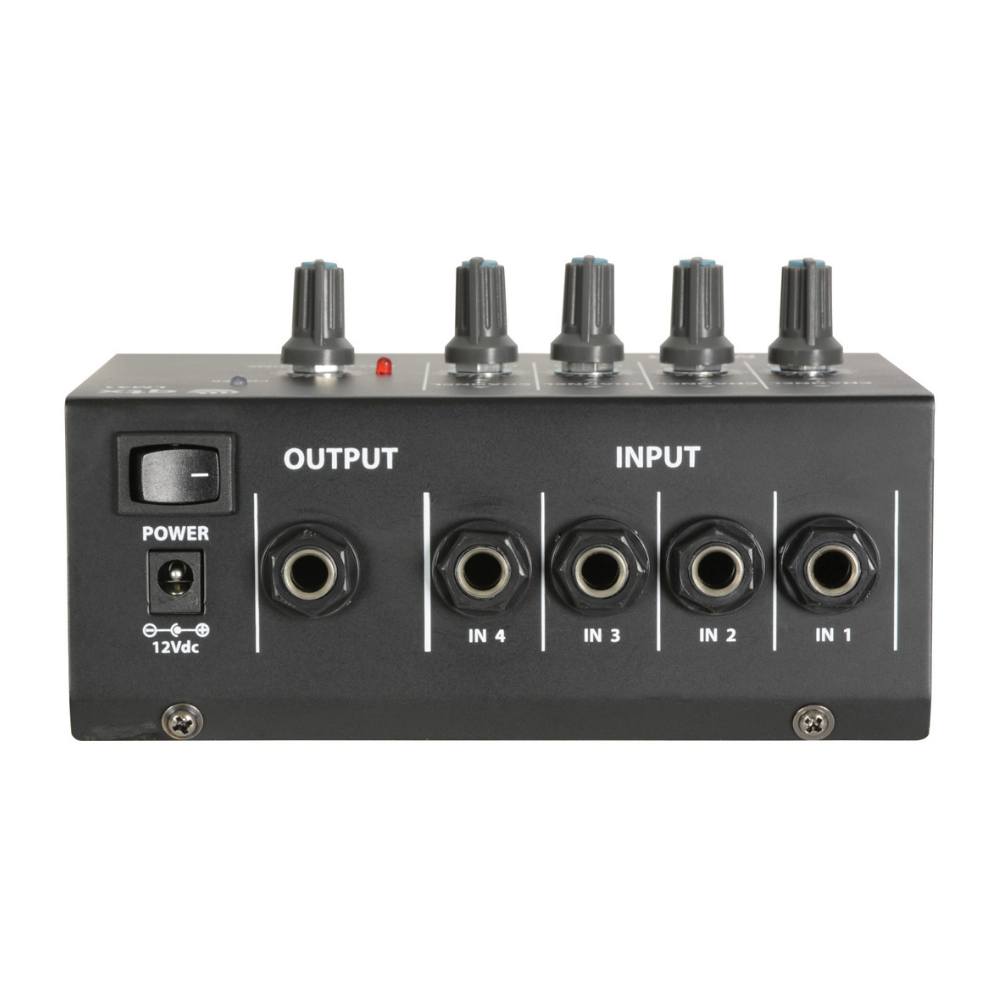

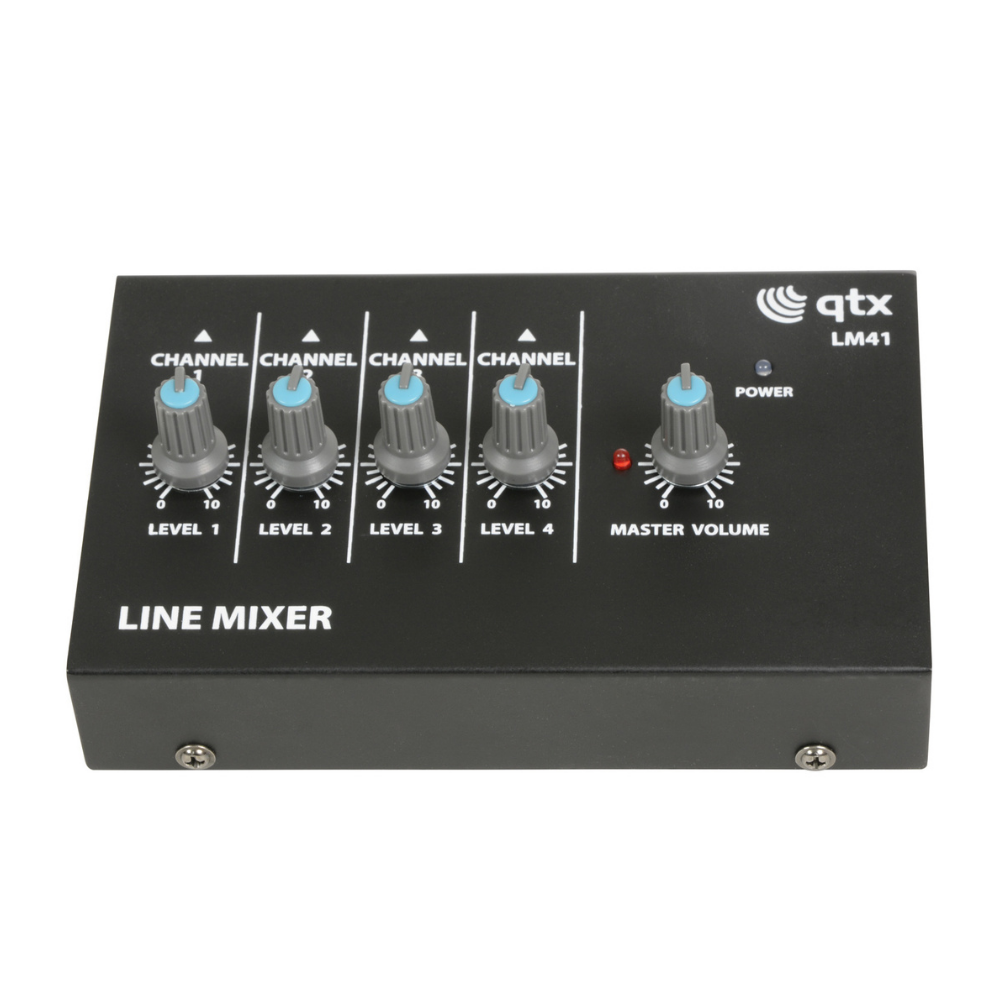

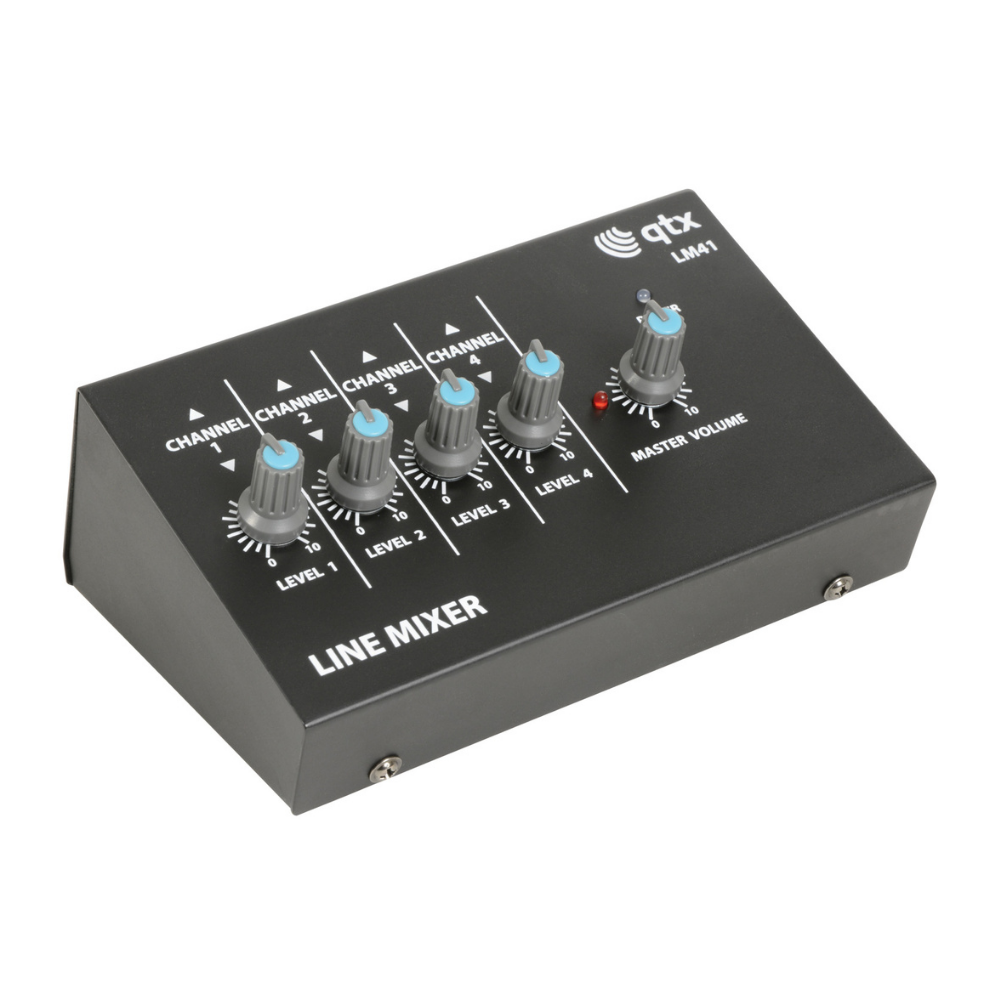

QTX LM41 Mini Line Mixer

The QTX LM41 Mini Line Mixer is a compact mixer with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output. Featuring 4 mono channels with separate volume controls for each input and master output. Powered by 1 x 9V battery or optional 12Vdc adaptor (not included).

QTX LM41 Mini Line Mixer Features:

• Compact format
• Battery or power adaptor operation
• Ideal as a sub-mixer for instruments
• Available in mono or stereo versions
• Optional 12Vdc power input
• Supplied with 9V battery
• Battery: 9V battery (PP3 supplied)
• Power adaptor: 12Vdc, 200mA (optional)
• Output level: +4dB (+8dB max.)
• Input impedance: 20k Ohms
• Output impedance: 600 Ohms
• Dimensions: 150 x 108 x 64mm
