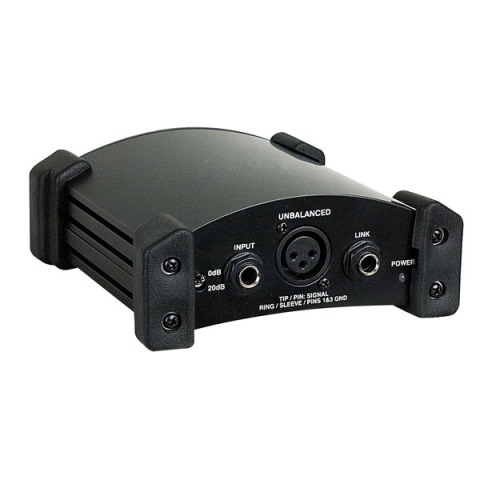

DAP Audio ADI-200 Active DI Box


• Roadproof housing with rubber feet
• Low distortion
• Ground lift
• 20dB Attenuation switch


The DAP Audio ADI-200 Active DI Box will help you with instruments that have a low level and high impedance output. It will convert the output to a more suitable signal without interfering or modifying the signal. With the ADI-200 your signal can be driven up to long cable lengths without any problems. It offers a clean and undistorted signal as well as reliability on touring stages. It works on a 9V battery or with phantom power. It has a ground lift function and an attenuation switch for 20dB.

DAP Audio ADI-200 Active DI Box Specifications:

Frequency Response: 10Hz-40KHz
Noise Level: < -105db
Distortion (THD): < 0.005% at 1khz, 0dbu output
Inputs: XLR & 1/4″ Jack unbalanced
Link out: 1/4″ Jack unbalanced
Output: XLR balanced
Power supply: 9V Battery or 18 – 48V DC (phantom)
Input Impedance: >250KΩ
Load Impedance: >600 Ω
Dimensions: 55 x 135 x 145mm (HxWxD)
Weight: 0,65 Kg
