Chord Active DI Box

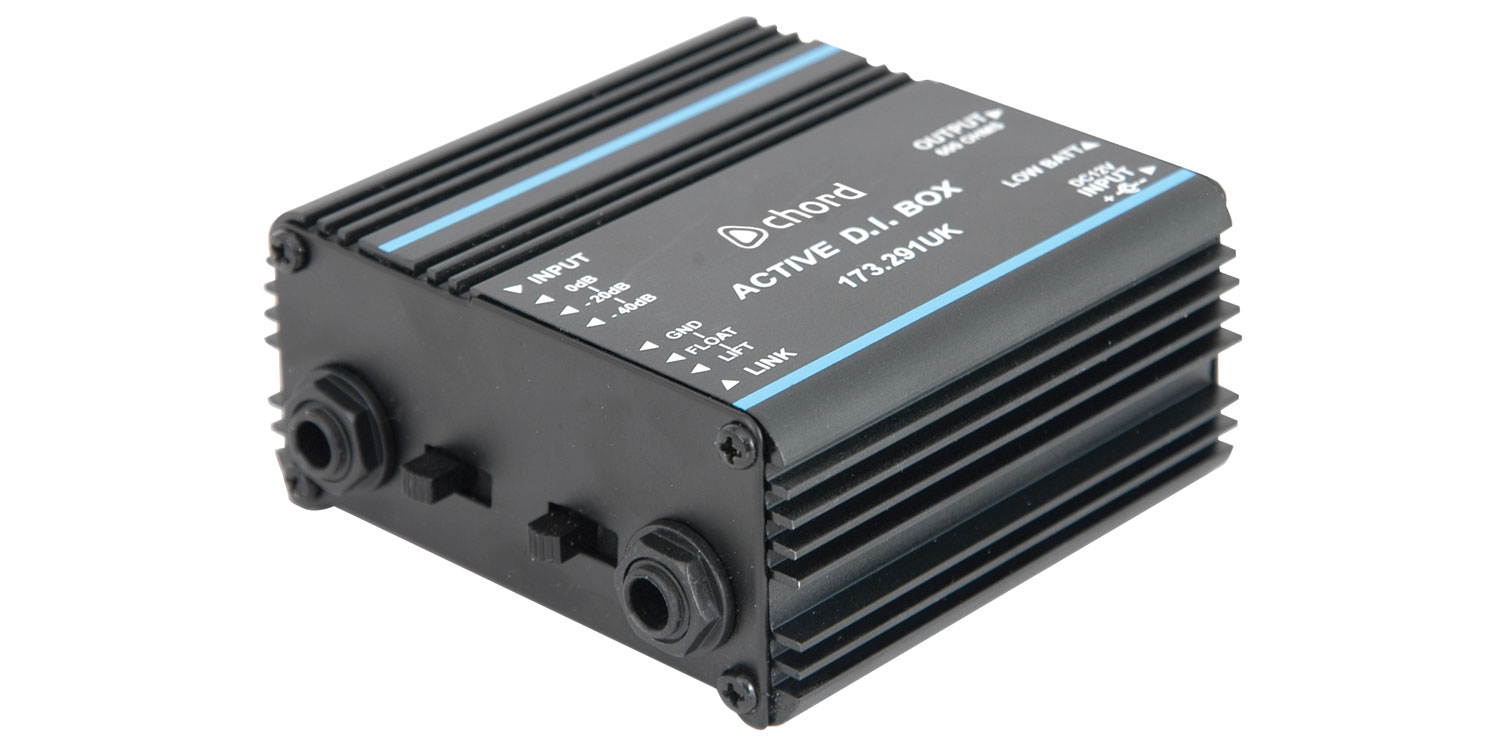

The Chord Active DI Box converts the high impedance signal from an instrument (guitar, bass, keyboard etc.) to a balanced low impedance one for direct connection to a mixing console. Also features attenuation and ground lift switches.

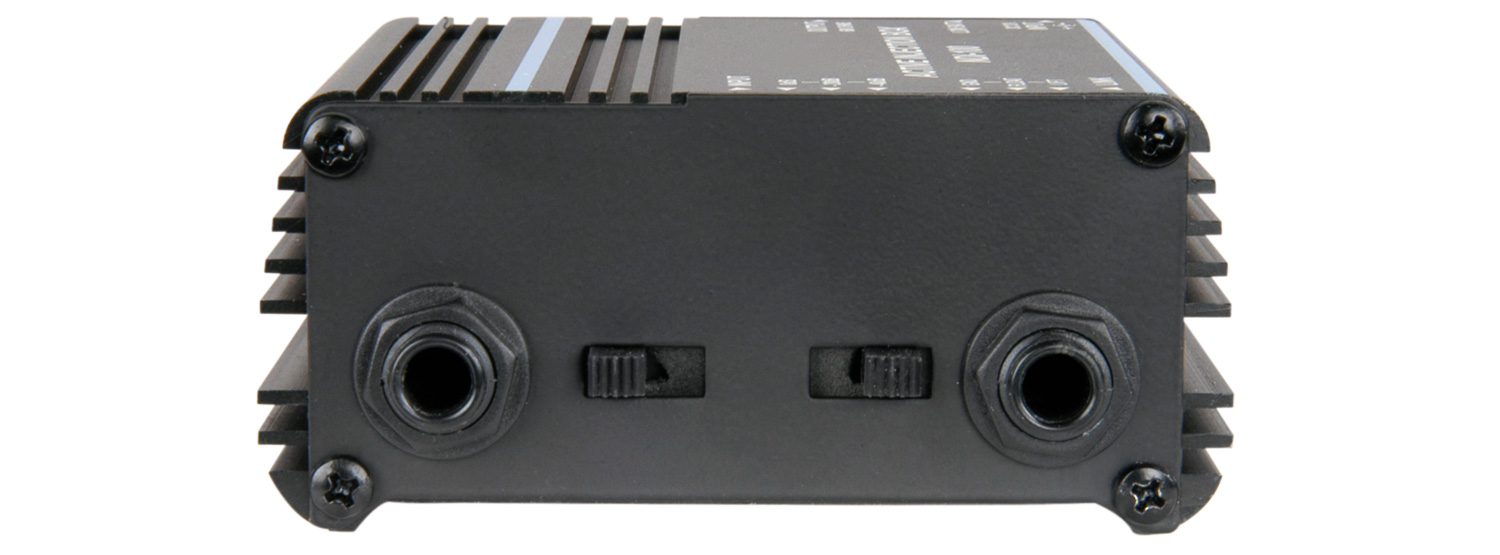

  • Unbalanced high impedance input via 6.3mm jack with parallel output for monitoring

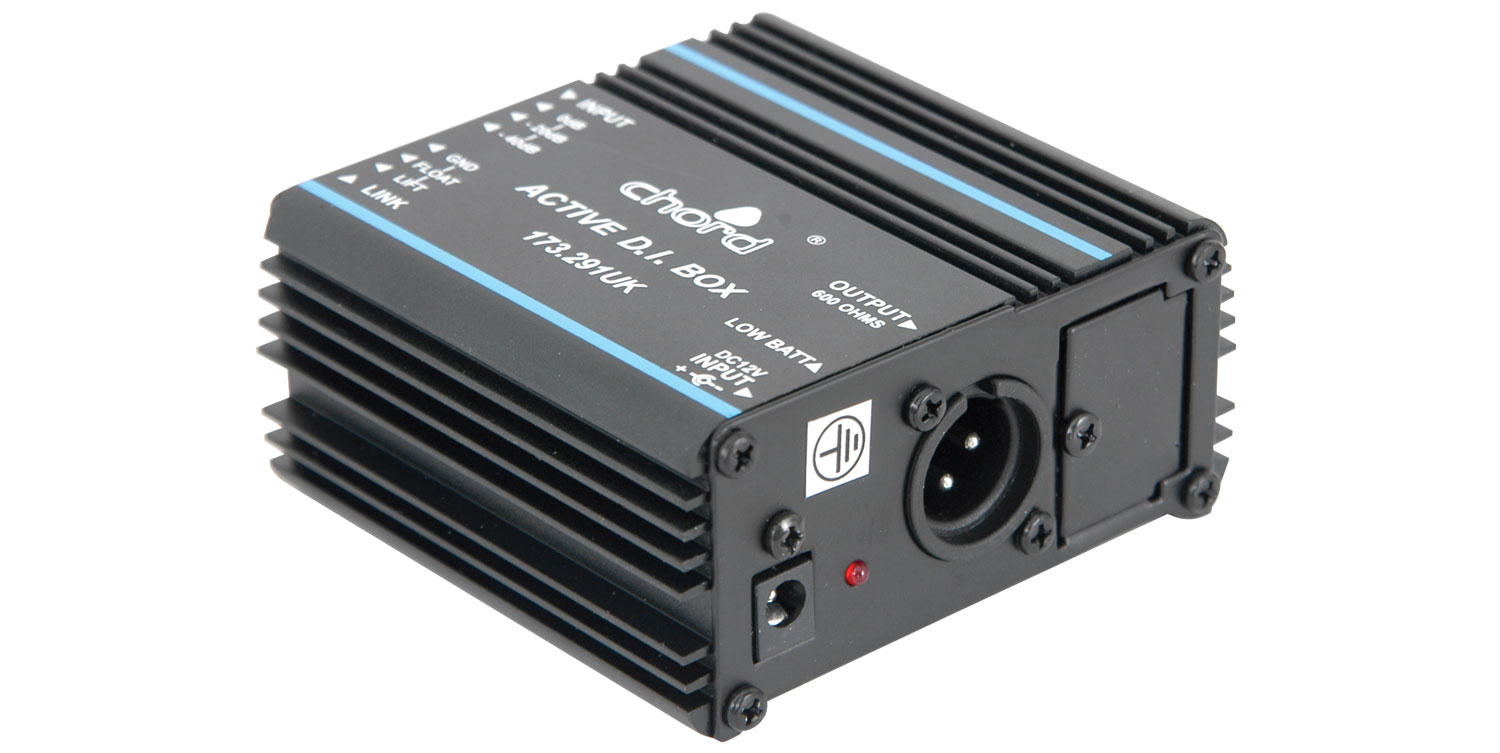

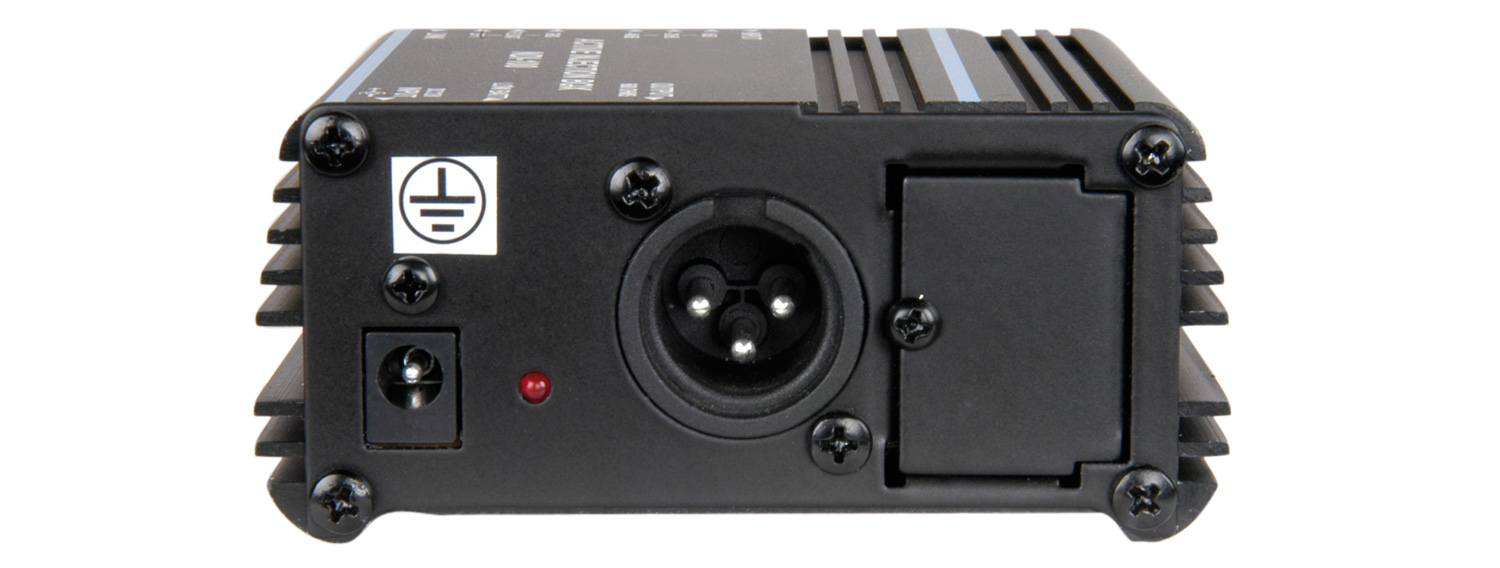

  • XLRM balanced output for connection to stage box or mixer
  • Switchable attenuation (0dB, -20dB, -40dB) and ground-lift function
  • Powered by +48V phantom power, 9V battery or external PSU 174.001 (not supplied)
Power supply 9V (1 x PP3), 9-12Vdc adapter or phantom
Attenuation 0dB, -20dB, -40dB
Frequency response 20Hz – 20kHz
Ground Connected/lifted/floating
Input impedance 1M Ohms (6.35mm jack)
Low battery LED @ 5V
Output impedance 600 Ohms, balanced, (XLRM)
Dimensions 100 x 45 x 100mm
Weight 250g
