Description

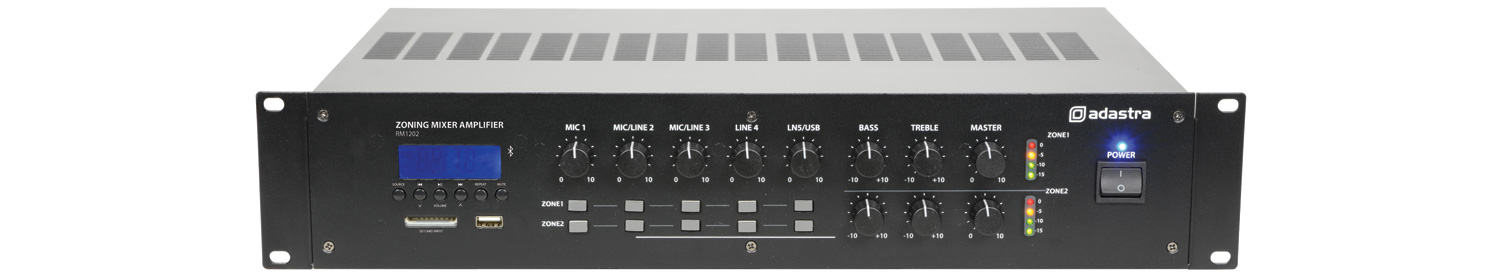

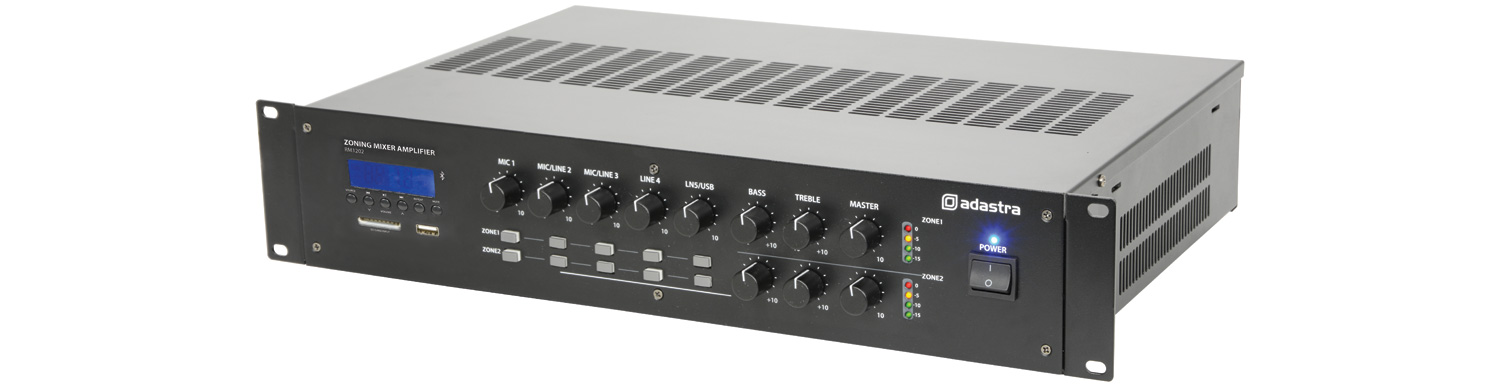

The Adastra 2 Zone Mixer Amplifier includes 2 separate 120 watt outputs to 100V or 4/8 Ohms speakers. Inputs for mic, 2 x mic/line and 2 line inputs with an integral USB/SD/FM player and Bluetooth receiver can be enabled independently to either of the 2 zones. Mic 1 channel has a variable override and switchable phantom power for use with condenser microphones. Designed for installations where independent paging and audio to 2 separate zones is needed.
Adastra 2 Zone Mixer Amplifier Features:
- Integral USB/SD/FM audio player
- Internal Bluetooth receiver
- 100V or 4/8 Ohms operation
- Can be configured as a stereo 100V amplifier
- 5 input channels
- Switchable +20V phantom power
- Switchable priority for channel 1
Adastra 2 Zone Mixer Amplifier Specs:
- Power supply: 110-230Vac, 50/60Hz (IEC)
- Power output: 2 x 120W rms
- Audio source: USB/SD/FM/BT audio player

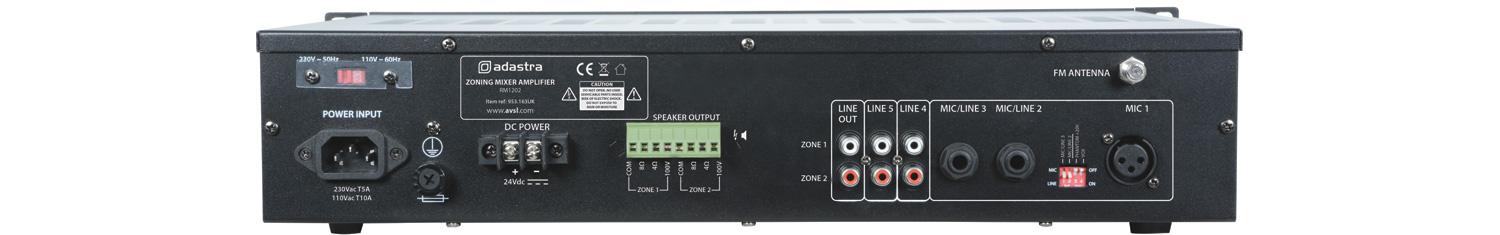

- Inputs: 1 x mic (XLR), 2 x mic/line (jack), 2 x line (twin RCA)
- Zone outputs: line 2 x RCA
- Zone outputs: speaker 2 x terminal outputs 100V/8 Ohms/4 Ohms/com
- Phantom power: +20V switchable to Mic.1 XLR
- THD: <0.76% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -11dB (line), -46dB (mic)
- SNR: 84dB (line), 82dB (mic)
- Bluetooth version2.1
- Frequency response: 100Hz – 20kHz
- Dimensions: 483 x 320 x 88mm
- Weight: 11.25KG
