Chord UP2 Portable UHF Wireless Set


  • 863.25MHz – 864.75MHz Wireless Operating Frequency
  • Portable UHF Wireless System With 2 Switchable Frequencies
  • Includes Mic, Beltpack Transmitter, Receiver & Headphones
  • Hot-Shoe Adaptor For Camera Mounting Applications
  • Robust ABS Case Provides Simple Transport & Storage


Chord UP2 Portable UHF Wireless Set

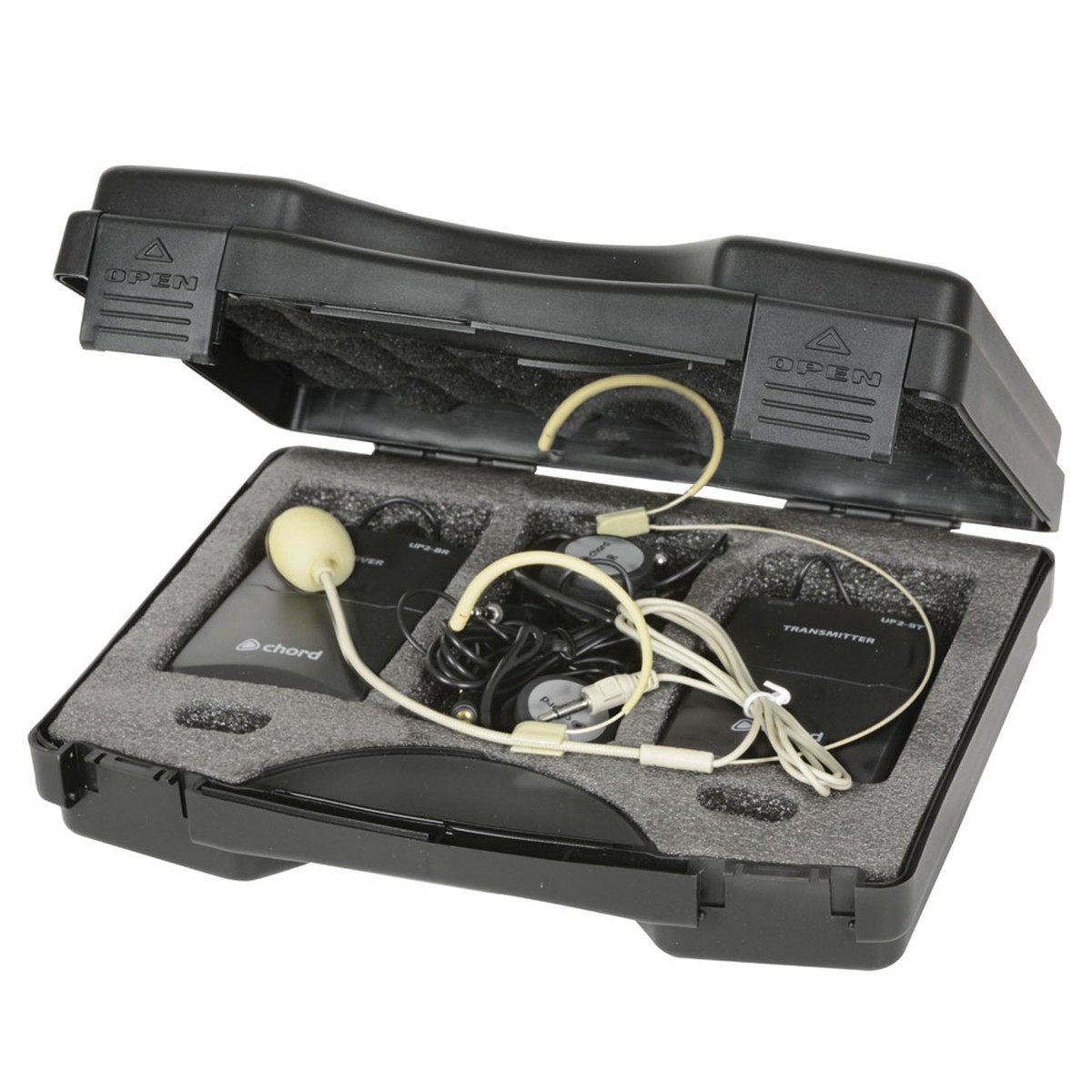

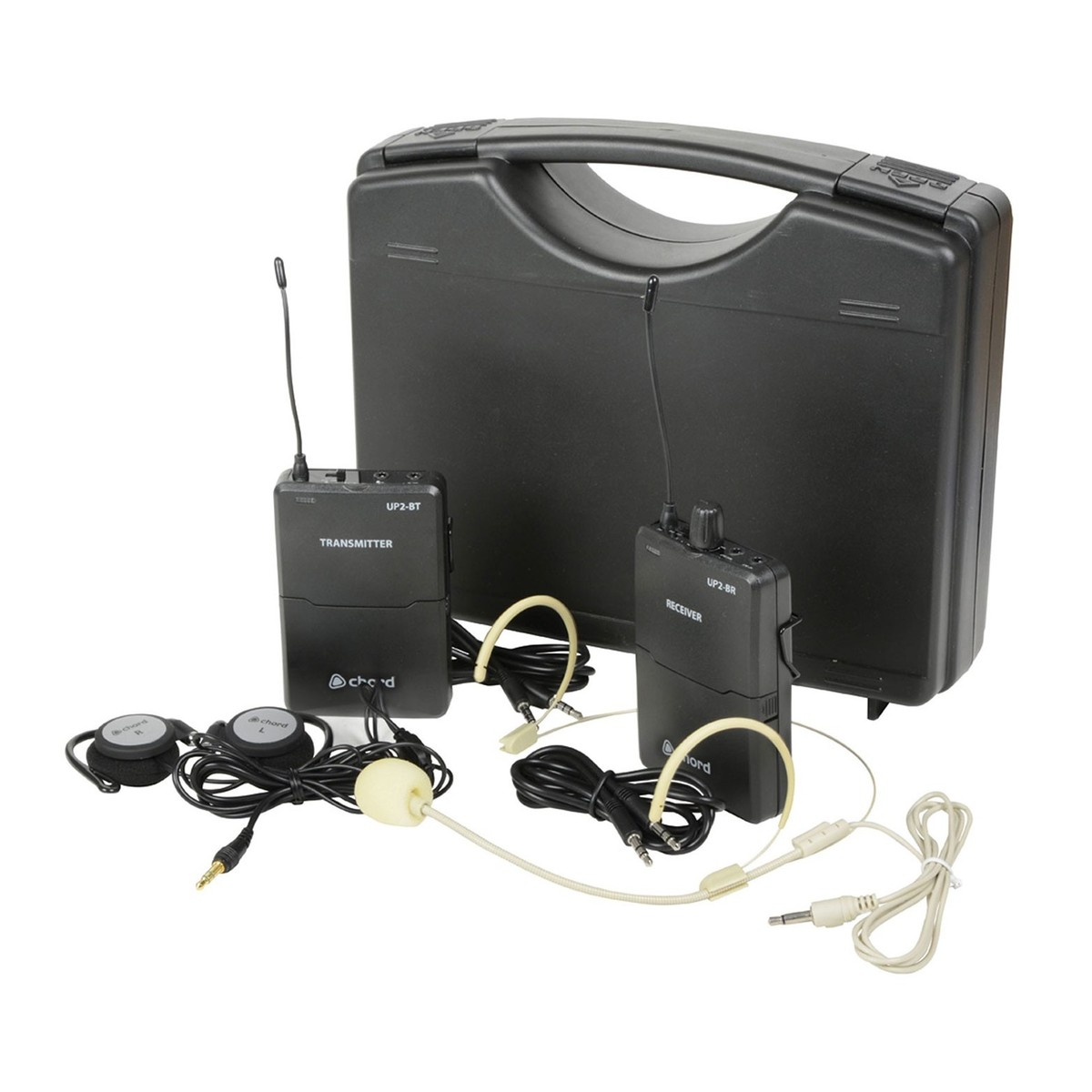

The Chord UP2 Portable UHF Wireless Set is a complete transmitter and receiver set within a robust ABS carry case. Included in the set is a neckband microphone, beltpack transmitter and receiver, and over-ear headphones. There are 2 switchable UHF carrier frequencies so users can either have 2 systems working within the same area or can switch between 2 sets of listeners. The UP2 also includes a hot-shoe adaptor for mounting to cameras for broadcast and video applications. The entire set is provided inside an ABS carry case for easy transport and storage.

Included In The Box

  • 1 x Discreet Neckband Microphone
  • 1 x Beltpack Transmitter
  • 1 x Beltpack Receiver
  • 1 x Over-Ear Headphones
  • 1 x Hot-Shoe Camera Adaptor
  • 4 x AA Alkaline Batteries
  • 1 x ABS Carry Case
  • 1 x 3.5mm Stereo Jack-Jack Lead
  • 1 x 3.5mm 4-Pole Jack-Jack Lead


  • Complete transmitter & receiver set in ABS carry case
  • Includes discreet neckband mic, over-ear headphones and hot-shoe adaptor for camera mounting
  • 2 switchable UHF carrier frequencies
  • Receiver compatible with standard headphones
  • Compatible with line level & output


  • Carrier Frequencies: 863.25MHz – 864.75MHz
  • Transmitter Power: >20mW
  • Maximum Range: 60m
  • Microphone: Miniature Electret Condenser Omnidirectional
  • Microphone Connector: 3.5mm Mono Jack
  • Phantom Power: 3V
  • Frequency Response: 40Hz – 15kHz
  • Auxiliary Input: 3.5mm Stereo Jack (Transmitter)
  • Audio Output: 3.5mm Stereo Jack – Headphone Or Line Out (Mono Summed)
  • Headphone Power: 2 x 50mW @ 1kHz (THD 3 Percent)
  • REC Output: 3.5mm 4-Pole Jack To Smartphone/Laptop
  • Power Supply: 4 x AA Batteries (2 For Transmitter, 2 For Receiver)
  • Weight: 740 g
  • Dimensions
    • Height: 210 mm
    • Width: 250 mm
    • Depth: 70 mm

Additional information

Weight 3 kg
Dimensions 45 x 12 x 34 cm
