Description

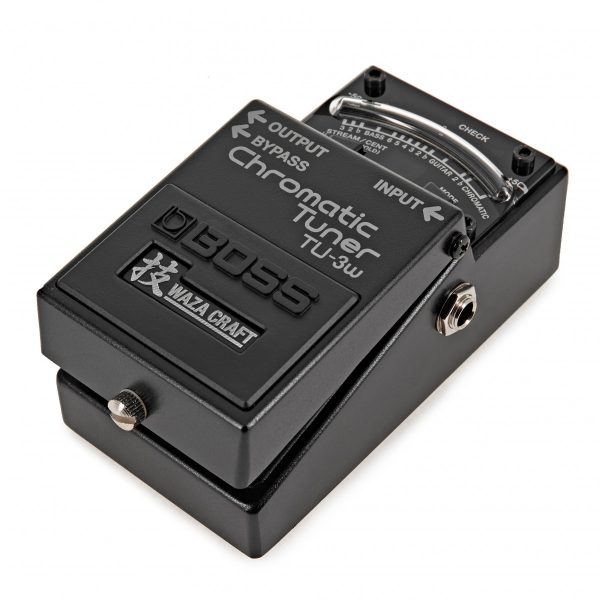

Boss TU3W Waza Craft Chromatic Tuner

The Boss TU3W Waza Craft Chromatic Tuner is going to keep your playing on point. Featuring premium Waza craftsmanship, the TU-3W produces a natural, pure signal transfer for maximum performance. Working with both guitars and bass, you can access any tuning you can imagine, all with pinpoint accuracy. And with an LED display, you’ll know exactly when you’re in tune, regardless of how much noise is going on around you!

Premium-quality stombox tuner

Based on the venerable TU-3, the TU-3W takes things a step further. It’s got the same tuning functions packed into an even better design. Enhanced by BOSS to produce a natural, pure signal transfer, you’ll get the reliable accuracy that performers crave. With redesigned circuitry and selectable buffered or true bypass, you’ve got maximum transparency at your feet.

Waza crafted design

Committed to achieving the best tones. BOSS use cutting edge technology to get their most out of their products, and that’s displayed in the TU-3W. Combining the best elements from classic analogue circuits with high-tech DSP, you’re getting the premium-quality and premium performance.

Designed and approved in Japan, the term “Waza” translates to “art and technique”. That’s found all throughout the TU-3W, which has been crafted to the highest standards, and to back that up, BOSS provide a five-year warranty to guarantee peace of mind.

Boss TU3W Waza Craft Chromatic Tuner Specifications:

• Tuning Range: C0 (16.35 Hz)–C8 (4,186 Hz)Reference PitchA4 = 436–445 Hz (1 Hz step)
• Tuning Accuracy: +/- 1 cent
• Modes: Chromatic, Chromatic flat x2, Guitar, Guitar flat x2, Bass, Bass flat x3Display
• Display mode: Cent mode, Stream mode
• Power Supply: Alkaline battery (9V, 6F22) or Carbon-zinc battery (9V, 6LR61)
• Bypass: Buffered bypass or True bypass
• Controls: Pedal switch, OUTPUT switch (BUF/THRU SW), MODE button, STREAM/CENT button
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack 1/4-inch phone type, BYPASS jack 1/4-inch phone type, DC IN jack, DC OUT jack
• Current Draw: 50 mA (DC 9 V), 110 mA (DC 9 V, when High Brightness mode is on)
• Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 5.5 hours, Carbon: Approx. 0.5 hours
• Accessories: Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”), Alkaline battery (9V, 6LR61)
• Dimensions: Width 73 mm, 2-7/8 inches, Depth 129 mm, 5-1/8 inches, Height 59 mm 2-3/8 inches,
• Weight: (including battery) 460 g
