Description

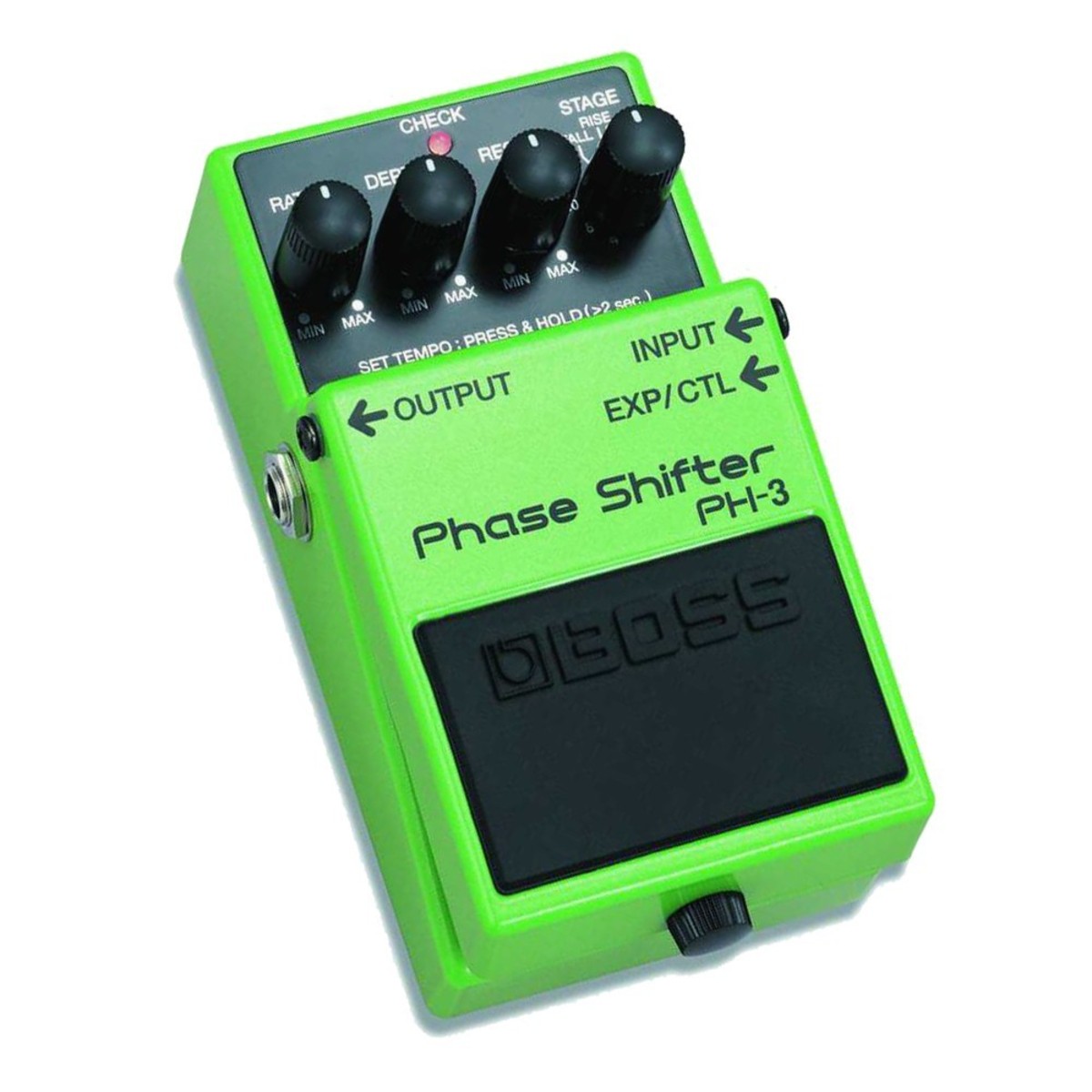

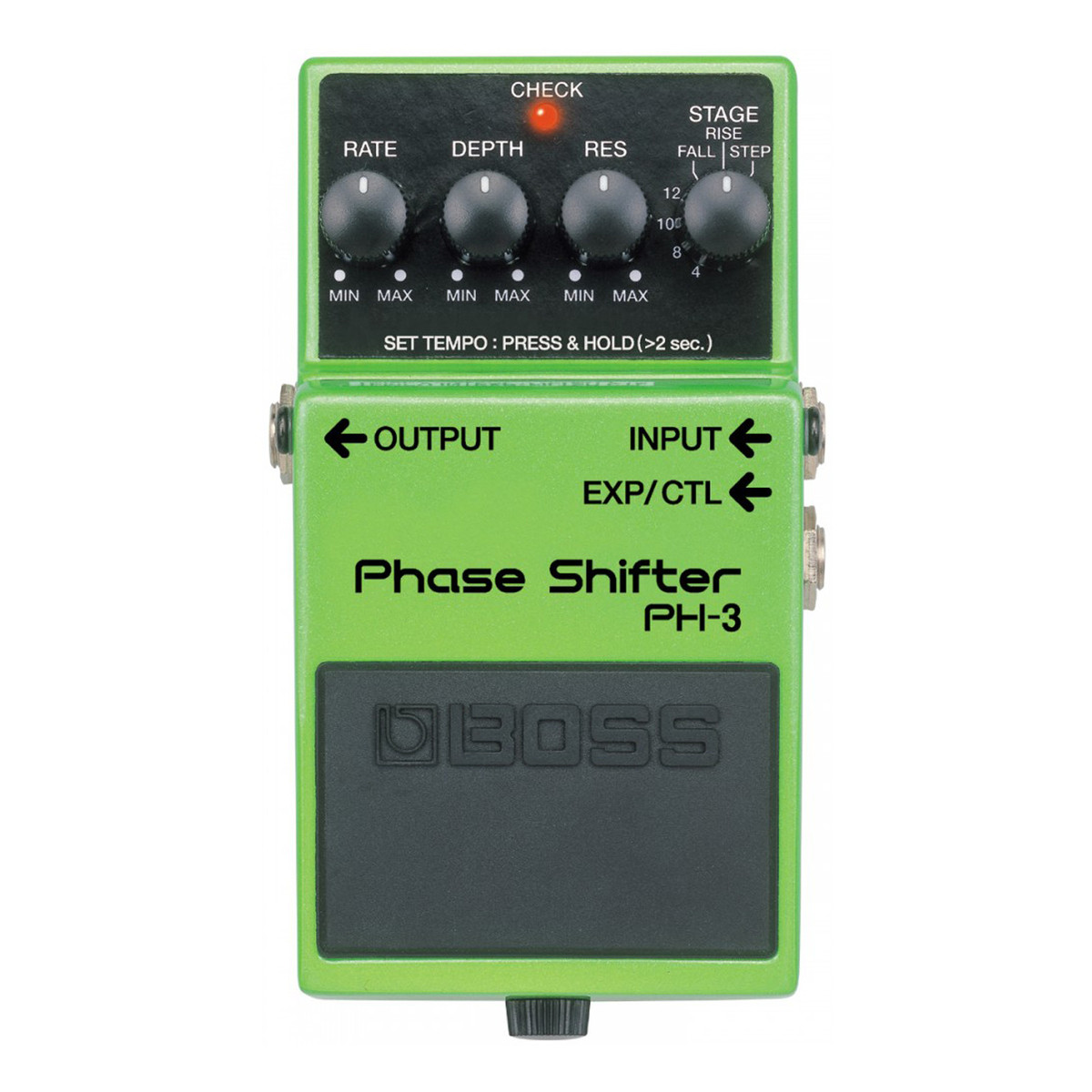

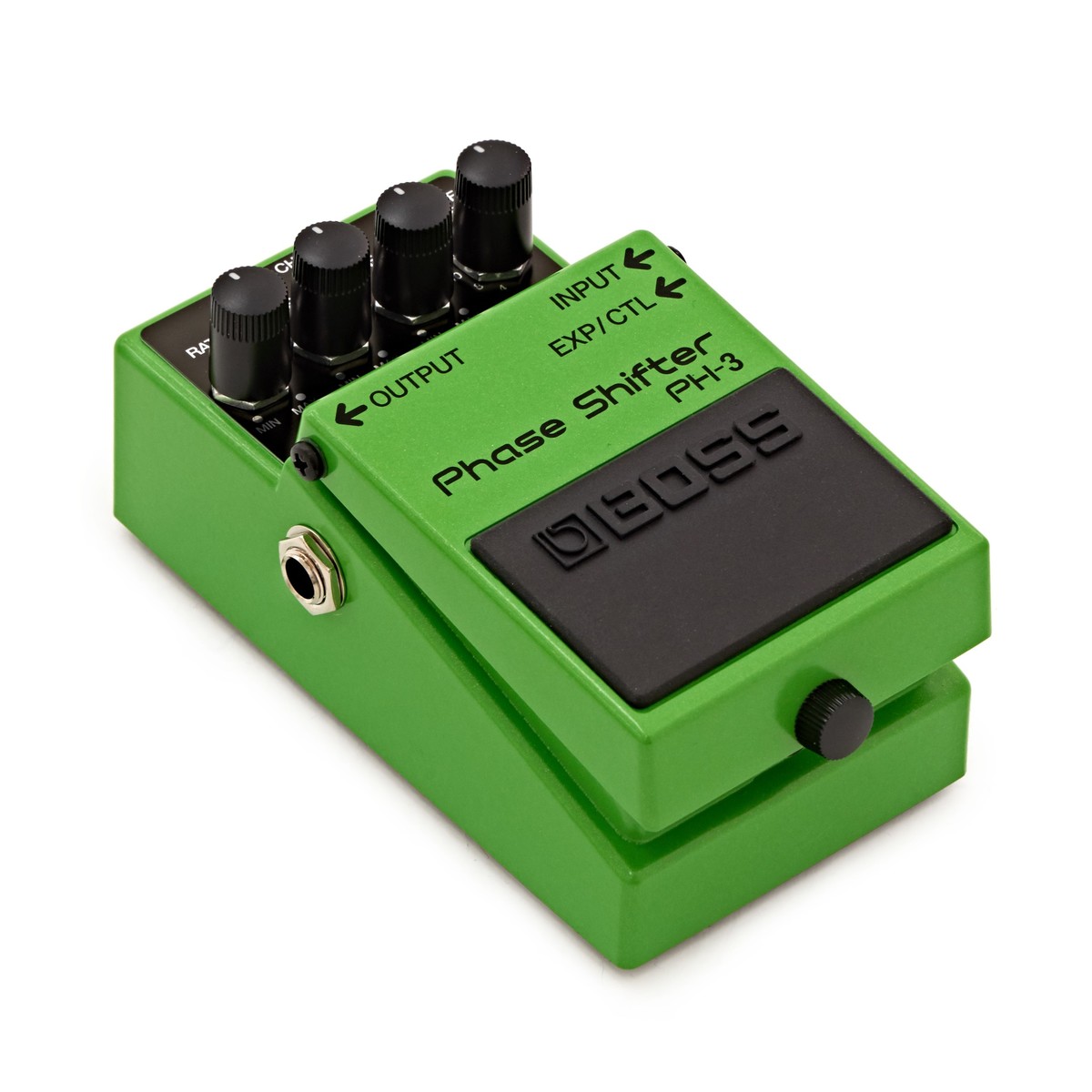

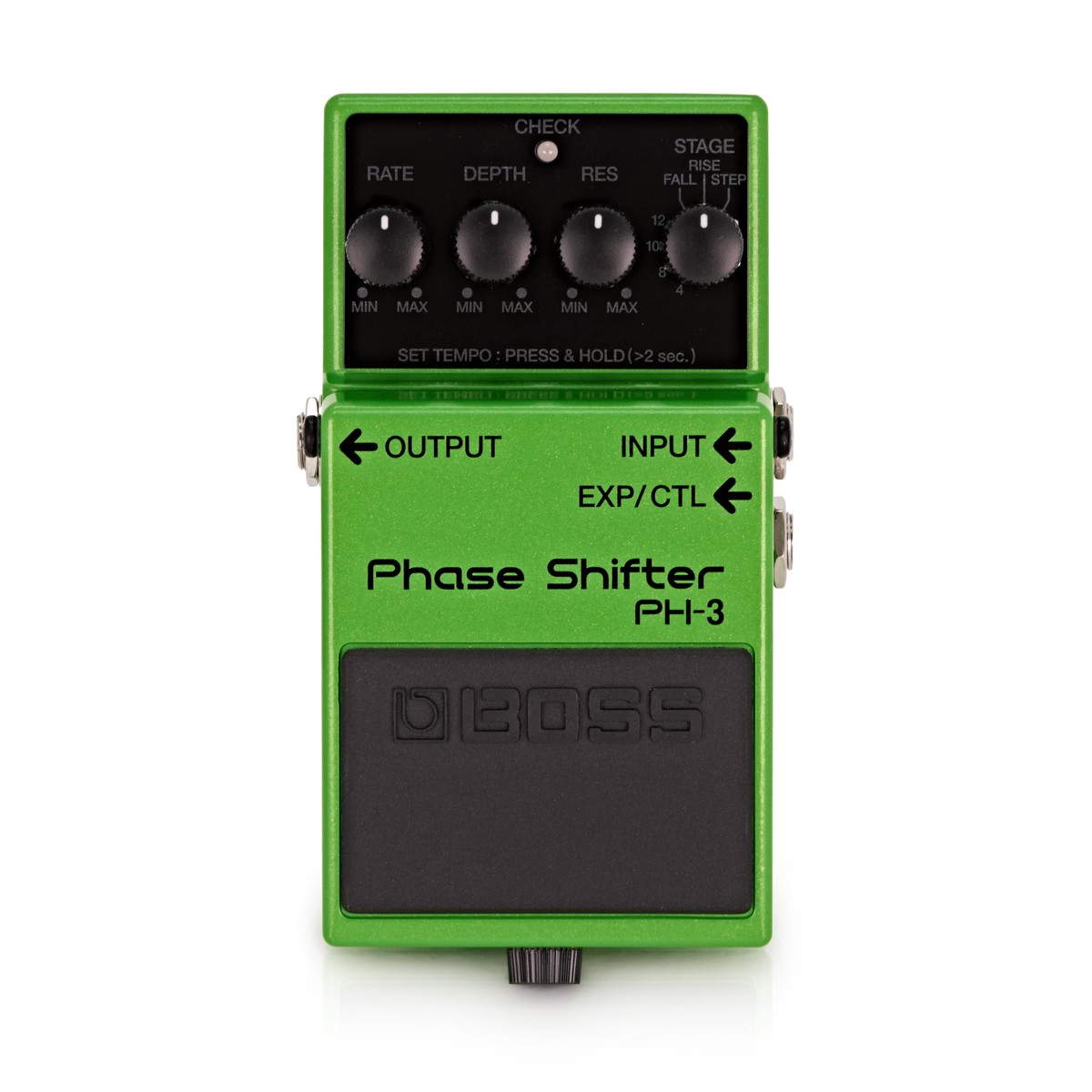

Boss PH-3 Phase Shifter
The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3’s Rate, Filter and Tempo.
Vintage BOSS phasing effects including 4-, 8-, 10-, and 12-stage phasers, plus new “Rise” and “Fall” effects for unidirectional phasing. Tap tempo sync or realtime control of rate via an Expression/Pedal input.
“Rise” and “Fall” Effects:
In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.
Total Control
Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play
Features
- Compact pedal with versatile vintage and modern BOSS phasing
- New “Rise” and “Fall” modes create unidirectional phasing
- Includes classic multi-stage phasers with selectable stages
- Realtime control of Rate, Filter, and Tempo via optional expression pedal
- Tap tempo sync of phasing effects
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohms
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohms
- Recommended Load Impedance: Residual Noise Level -92 dBu (IHF-A, Typ.)

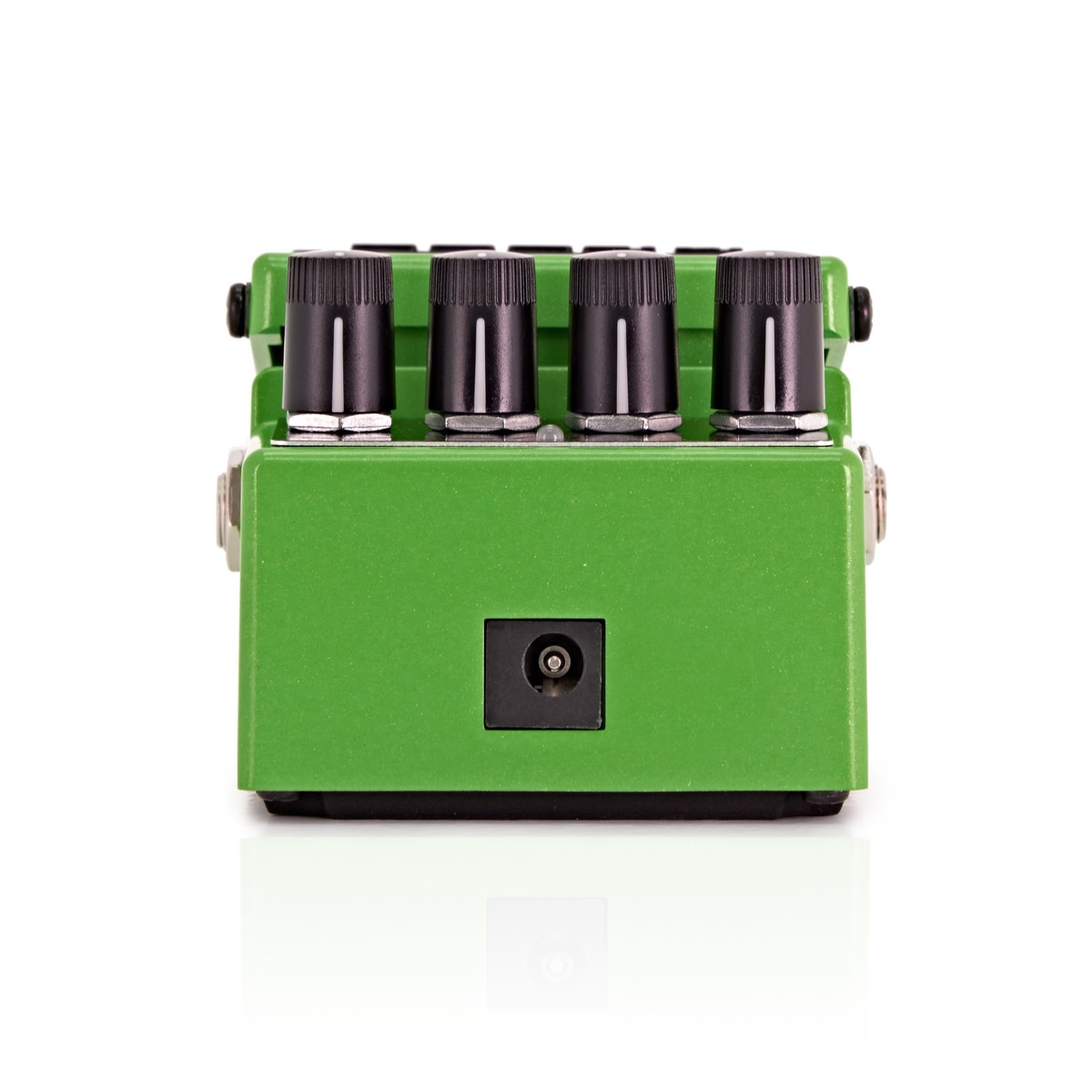

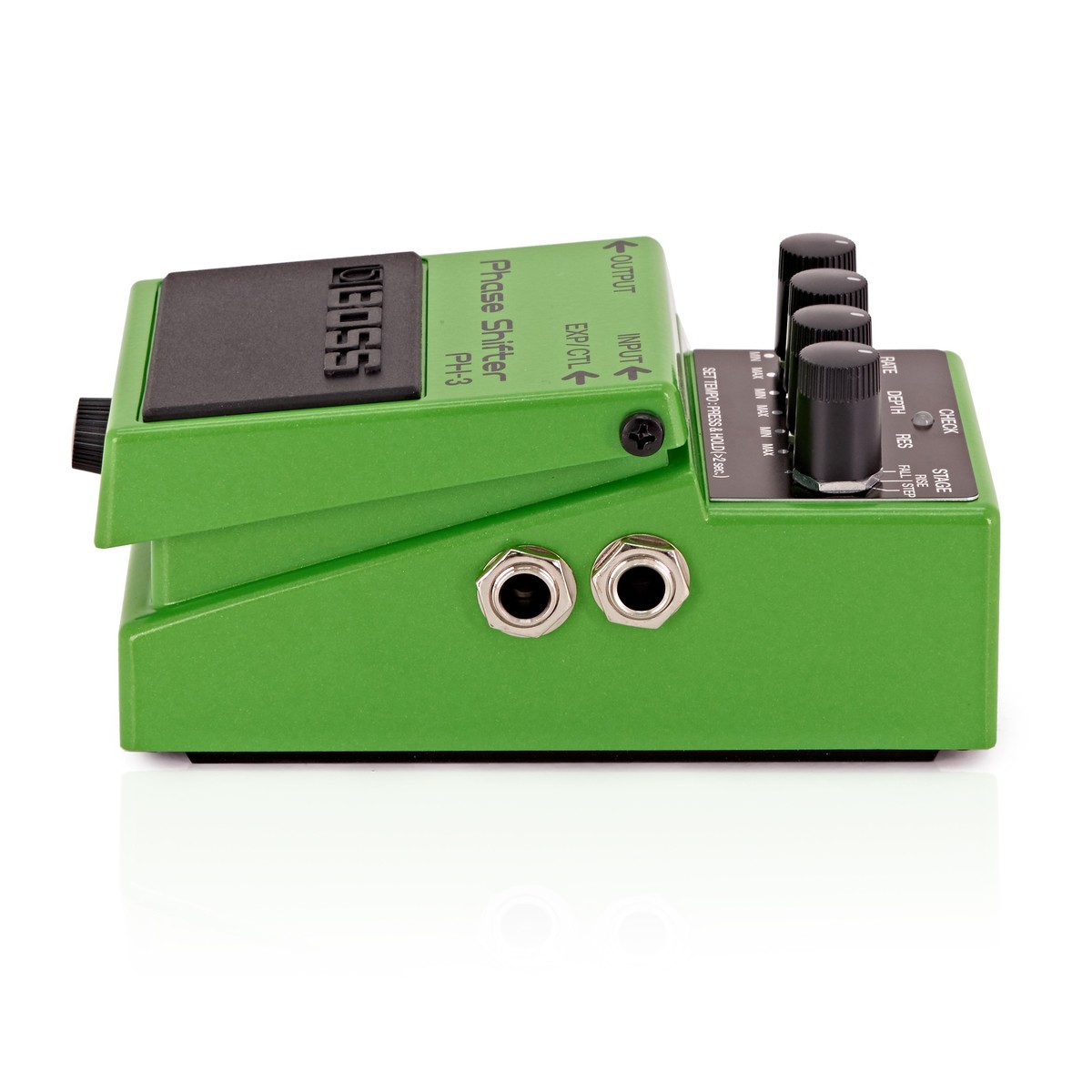

- Connectors: INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
- Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
- Current Draw: 50 mA (DC 9 V)
- Accessories: Dry Battery 9 V type (6F22/9 V)
- Dimensions: (W) 73 mm, 2-7/8 inches (D) 129 mm, 5-1/8 inches (H) 59 mm, 2-3/8 inches
- Weight (incl. battery): 0.4 kg, 0 lbs. 15 oz.
