Description

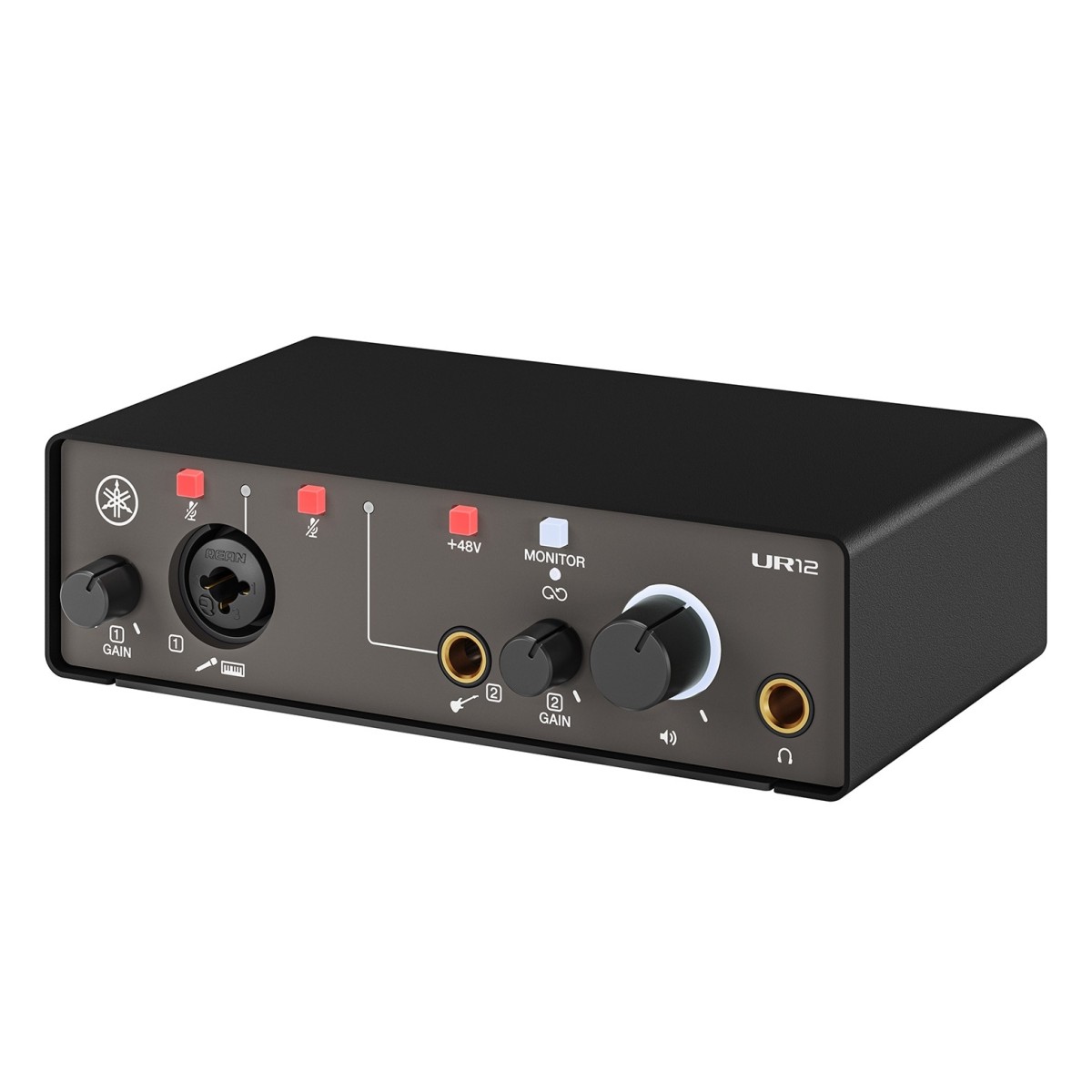

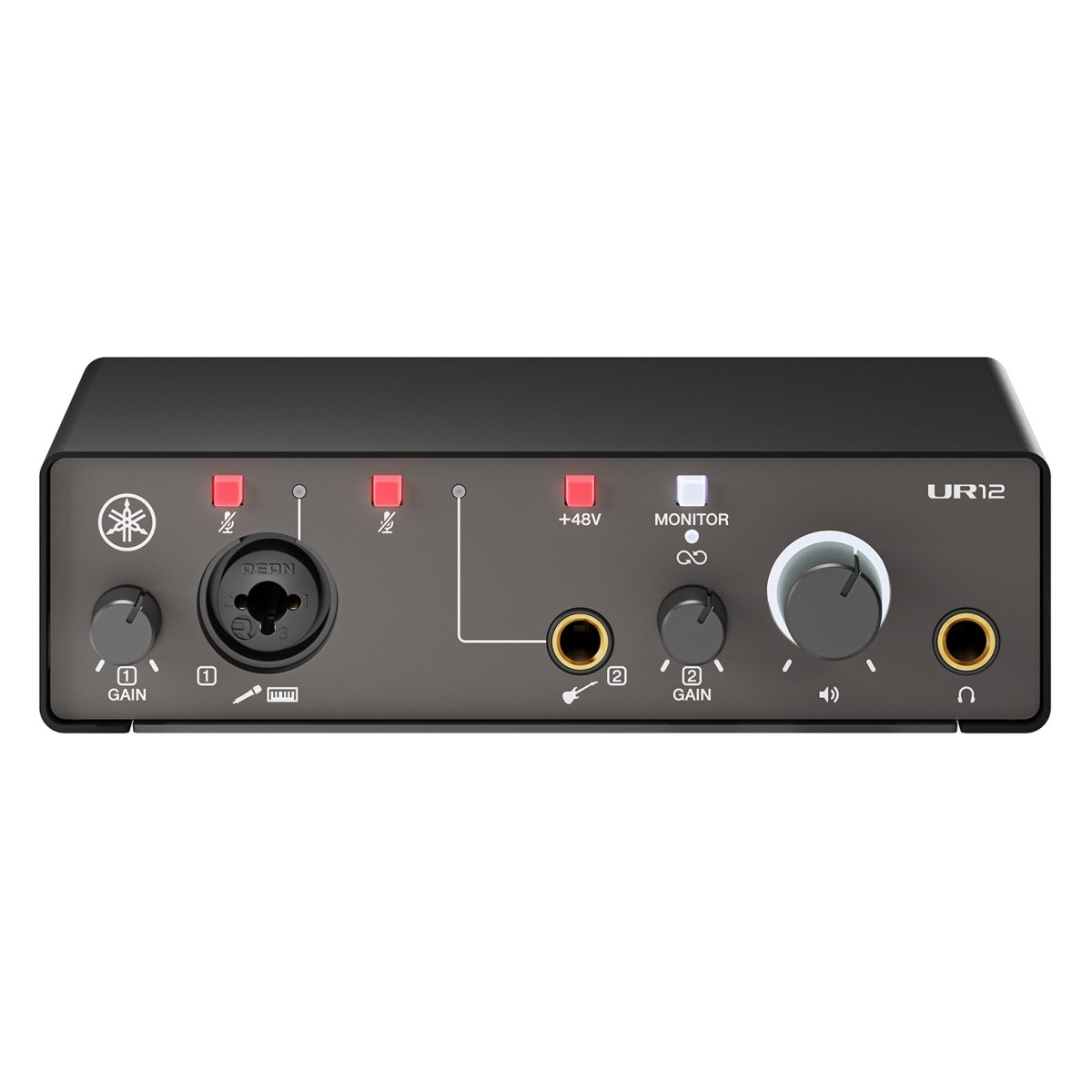

Yamaha UR12 MK3 Audio Interface Black
The Yamaha UR12 MK3 Audio Interface is the perfect first audio interface for aspiring musicians, content creators, and podcasters ready to start making their own recordings. Even with zero experience, you can begin producing high-quality content from your very first session – with no stress and no steep learning curve.
Whether you’re laying down a song idea or launching your first podcast, everything you need is right here – clear, simple, and ready when you are. It features high quality UR-preamps and supports 24-bit/192 kHz hi-res recording. It also has premium A/D conversion via USB-C and a high-spec headphone amp all in a compact design.
Record or stream instantly by connecting a mic or instrument. Easy multitrack recording and editing with Cubase AI. Expand sounds with Steinberg Plus. Compatible with laptops and tablets.
Equipped with a high-quality UR mic preamp. Supports 24-bit/192 kHz high resolution recording. Premium A/D conversion for faithful sound reproduction. High-spec headphone amp
for accurate monitoring.
Compact design for easy portability. Intuitive level adjustment with knob and indicator. Front-Panel monitor and mute controls.
UR12MK3 comes bundled with everything you need to start creating — right out of the box. You’ll get access to a suite of Steinberg software designed to simplify your workflow and expand your creative options.
Steinberg Plus adds a wide range of sounds, effects, and virtual instruments to your Cubase AI DAW, giving you more tools to shape your sound. And with MixKey, our intuitive standalone software mixer, setting up clean audio routing and high-quality streaming on your PC is easier than ever. From your first idea to your first finished track or livestream — it’s all here.
Yamaha UR12 MK3 Audio Interface Black Features:
- I/O Connectors
- Analog Input ~ 1 Mic/Line Combo, 1 TRS *Input 2 supports Hi-Z
- Analog Output ~ 2TRS
- USB TO HOST ~ 1 (USB Type-C, 24-bit)
- Phones ~ 1 TRS (40 mW+40 mW @40 Ohm)
- DC ~ 2 (Type-C USB bus power or Type-C USB DC IN)
- User Interface ~ Input Gain, Mute, +48 V phantom power, Monitor switch, Volume (Main/Headphones)
- Recording & Playback  – USB ~ 2-track recording, 2-track playback
- Sampling frequency rate ~ 192 kHz – 44.1 kHz
- Frequency response ~ +0.0/-0.3 dB (20 Hz to 20 kHz)
- Total harmonic distortion ~ [MIC/LINE/Hi-Z] 0.004 % at 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.004 % at 1 kHz, 20 kHz LPF
- Dynamic range ~ [MIC/LINE/Hi-Z] 106 dB, [MAIN OUTPUT] 107 dB
- Gain range ~ 54 dB (Hi-Z: 39.5 dB)
- Power requirements ~ DC5 V/0.5 A
- Power consumption ~ 2.5 W
- Dimensions ~ W 158 mm (6.2″), H 47 mm (1.9″), D 102 mm (4.0″)
- Net Weight ~ 450 g (1.0 lb)
- Included Accessories ~ UR22MK3 UR12MK3 Setup Guide, Cubase AI License Card, Steinberg Plus License Card, USB 2.0 Cable (USB Type-C to Type-A, 1.5 m)
- Operating temperature ~ 0 to + 40 ℃
- Outline – Mixing Capacity
- Input Channels ~ 2 Mono + 1 Stereo loopback
- Mix Buses ~ 1
- Stereo Buses ~ 1
