Description

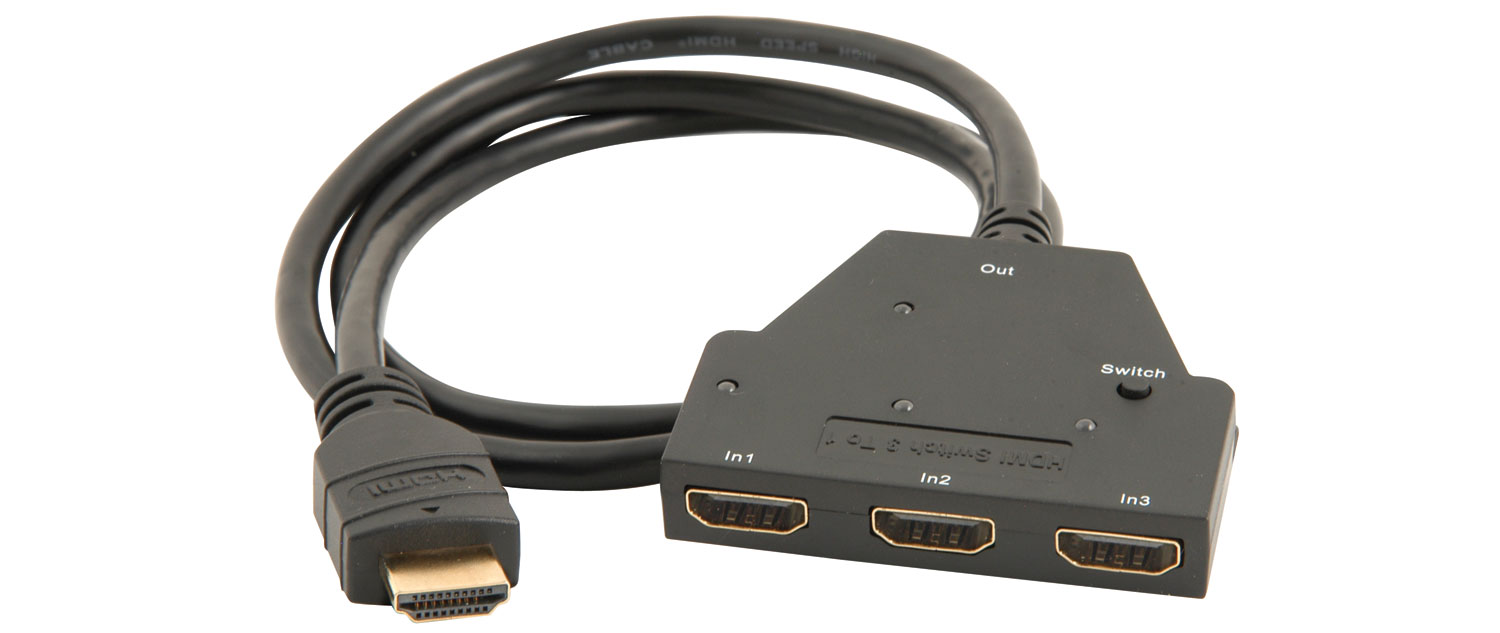

A compact HDMI switcher with 3 inputs and 1 output. Allows a single display to be connected to three HDMI sources without signal loss for up to 20.0m of HDMI cable.
- Allows quick switch between three HDMI devices and display on a single screen
- Easy connection and installation
- Gold plated HDMI connectors for optimum signal transfer
- Supports 24/36bit deep colour video formats
- Supports LPCM/LPCM7.1/DSD/DVD audio Dolby®-AC3/DTS5.1/DTS-HD/DTS master audio/Dolby® Digital Plus and Dolby® True-HD audio formats
- No power supply required
| HDMI version | High speed with 3D support |
|---|---|
| HDCP version | 1.2 |
| Resolution | 1080P/1080i/720P/576P/576i/480P/480i |
| Data transfer rate | 6.75Gbps |
| Operating humidity range | 5% to 90% RH (no condensation) |
| Operating temperature range | -15°C to +55°C |
|---|---|
| Lead length | 890mm |
| Dimensions | 110 x 75 x 23.5mm |
| Weight | 77g |
